HPR GS7 DCT output flange

 HPR DCT output flange 2.0

This flange bolts directly to your DCT output-shaft, and enables you to use the common and beefy 1350 u-joint flange, or the Toyota or Nissan 4 bolt pattern/pilot.

CNC machined out of 4140 chromoly, thru hardened for ductility, and case hardened for high surface hardness.

After the dual stage hardening process, its polished and Zinc coated black.

Comes with a pilot to perfectly centre the propshaft for all 3 variations.
Machined  speed pickup tooth integrated to the flange

See Installation Guideline

DCT output teeth count: 24

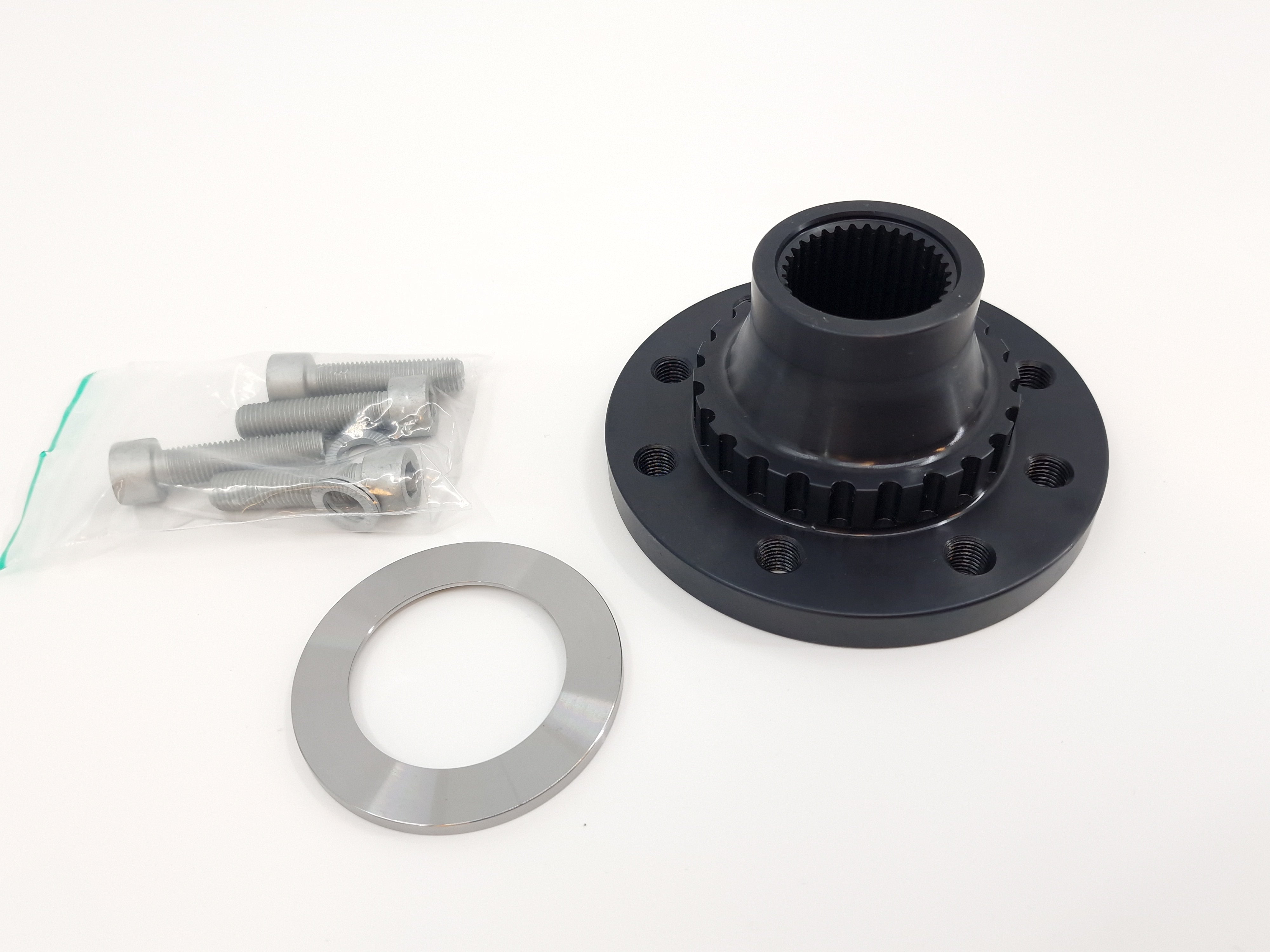

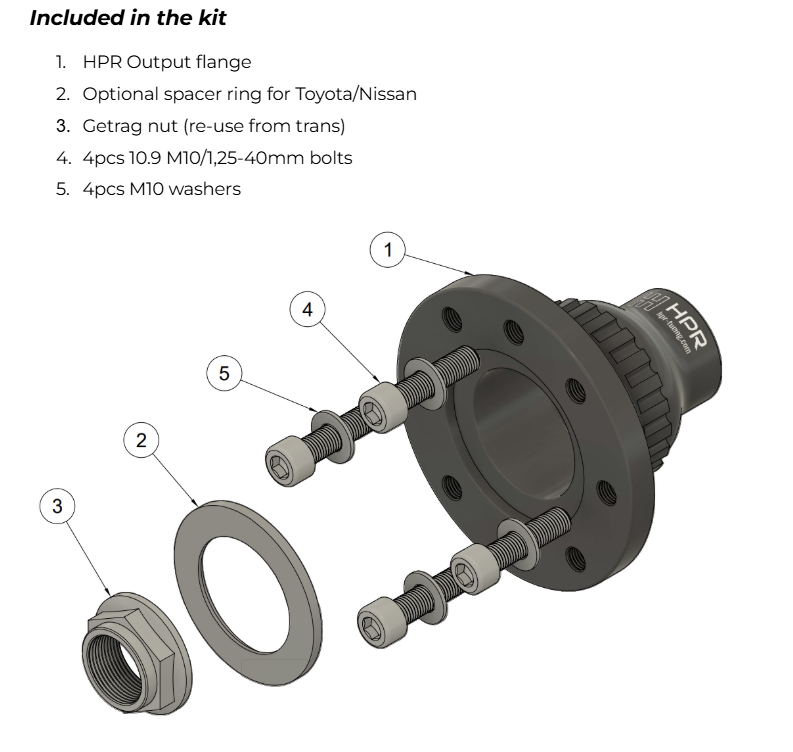

Included with the kit:

• HPR Output flange
• Optional spacer ring for Toyota/Nissan
• Getrag nut (re-use from trans)
• 4pcs 10.9 M10/1,25-40mm bolts
• 4pcs M10 washers

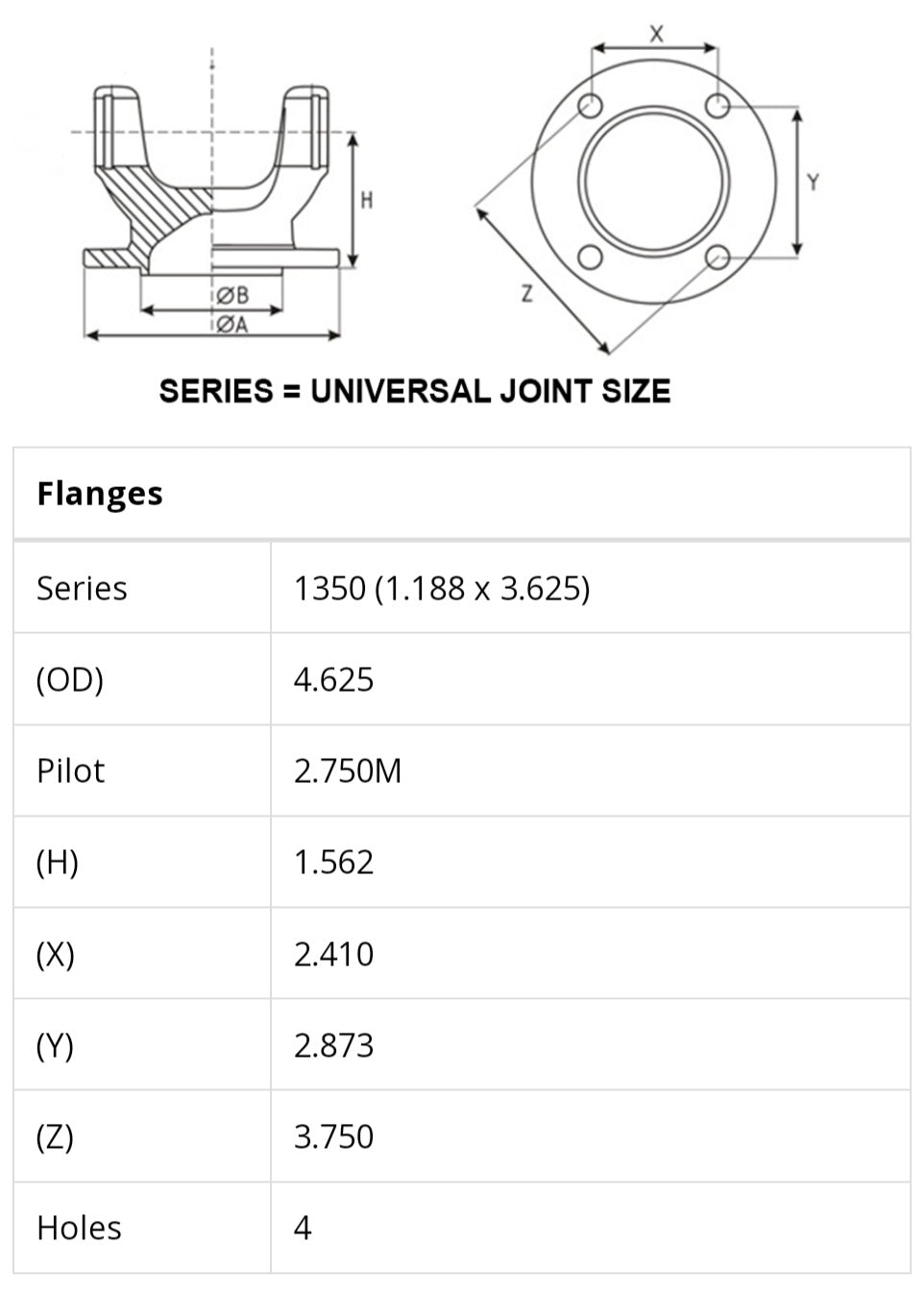

Compatible 1350 yokes

Sonnax T3-2-119A (Aluminum)

Dana_Spicer 2-2-1789 (steel)

Dana_Spicer 3-2-119 (steel)
