ECUmaster EMU Black

EMU BLACK

The best bank for buck high quality ECU on the market.

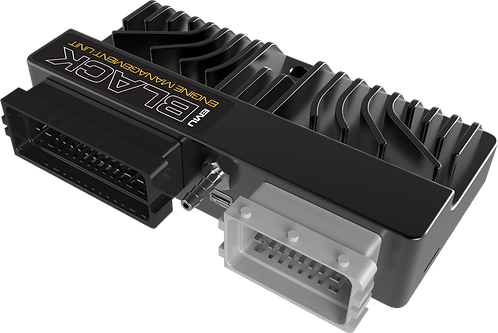

EMU BLACK

The EMU Black is a class-leading, stand-alone engine management system, designed to operate the most advanced and complex engines available. It is a successor of our proven system, EMU. Throughout EMU’s lifetime we collected lots of data that allows us to substantially improve the device hardware and software.

EMU Black targets race cars, road cars, motorcycles, boats, and stationary engine applications.

The EMU Black controls fueling, ignition and auxiliary systems on 1-12 cylinder engines including those with drive-by-wire throttles and VVT.

It can drive up to 6 passive or 12 smart coils directly and does not require external amplifier/power modules to achieve this. Sophisticated drive-by-wire strategies provide a wide range of throttle control along with advanced plausibility (fault/error) checking for safety.

Free, easy to install firmware upgrades further improve system capabilities (e.g. new strategies, trigger patterns, CAN data streams).

TECHNOLOGY

The EMU Black is assembled according to IPC-S-815A standards to ensure high reliability of the product. The device is manufactured on an automated assembly line with optical inspection, automatically tested including burn-in. The PCB board quality and design, special surface coating and IP60 enclosure keeps the device operational in the harshest environments. The components used allow continued operation in a very wide temperature range (AECQ-100 GRADE 2 (-40 to +105˚C).
