CANTCU 8HP / DCT PNP Wiring Harness

Finally a TRUE Plug and play harness for all the CANTCU users out there!

The HPR designed wiring harness for both 8HP and DCT setup, is especially designed for versatility and user friendliness in mind. Most connections on the harness are true plug and play, without the need for wiring connectors.

No need to split power and grounds, and no need to wire in relays. We at HPR have done all the hard work for you.

Whether you decide to go for an OEM shifter or the popular DCT-shifter, you have a plug and play solution with both connectors available.

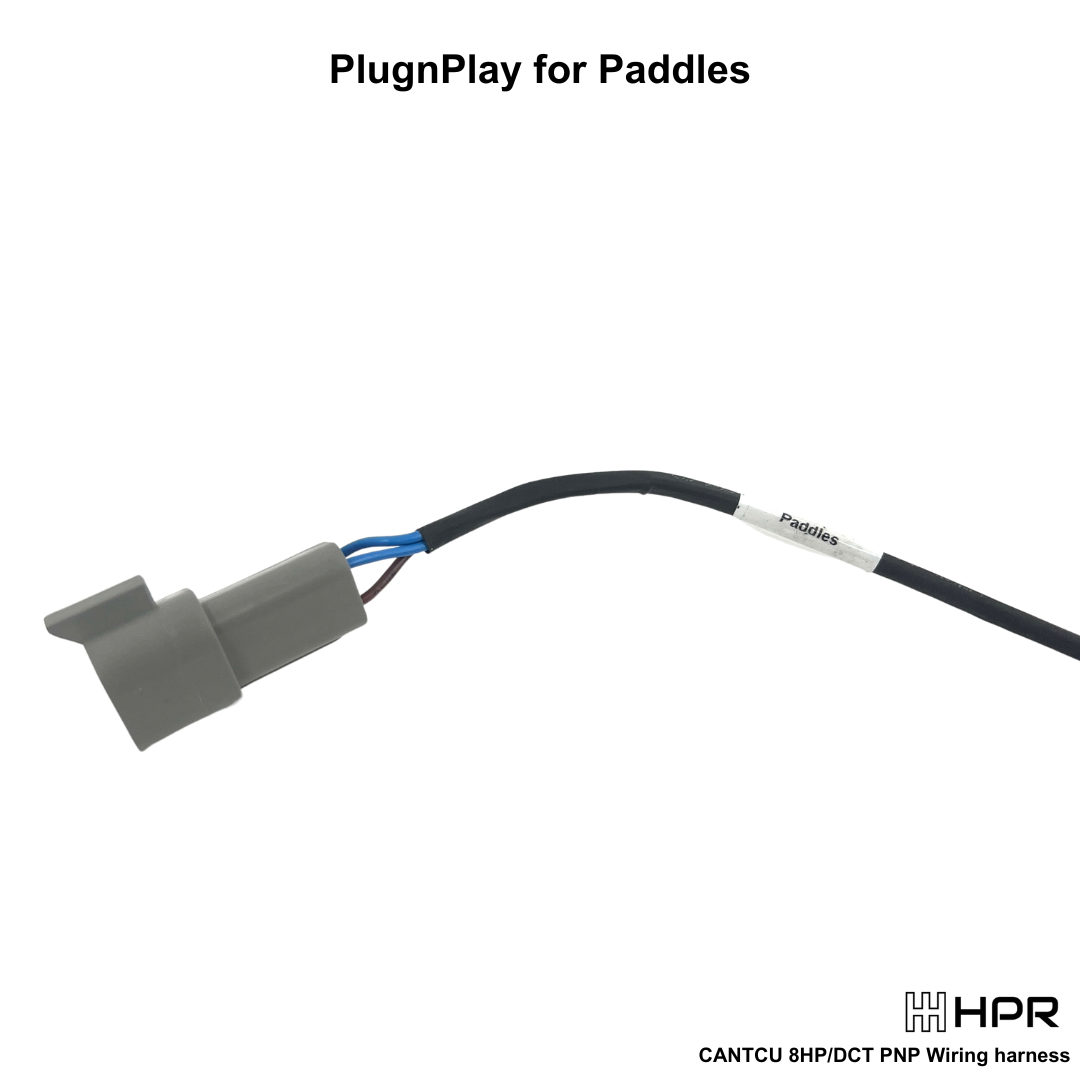

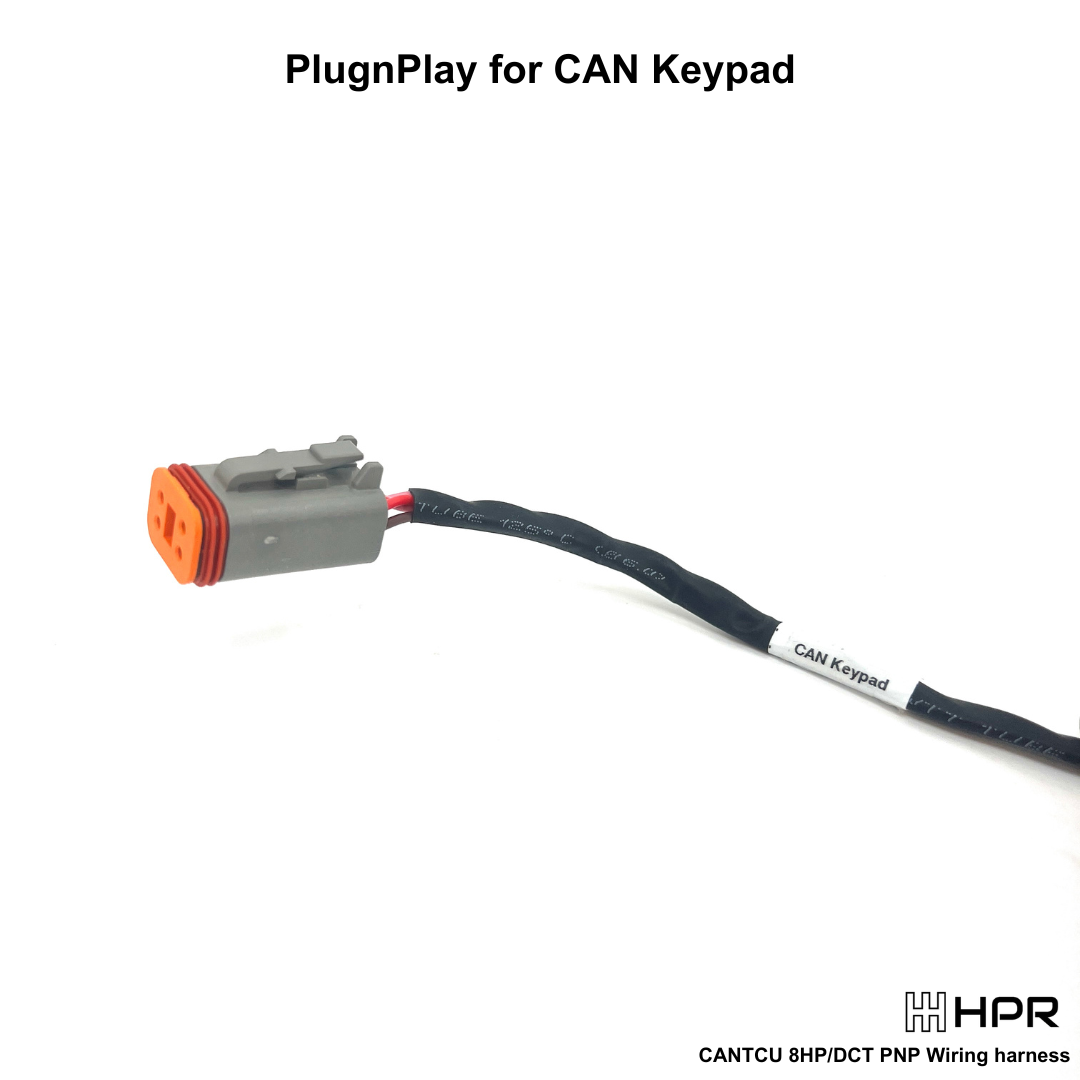

Shifter paddles or CAN Keypad? Don't worry, it's plug and play.

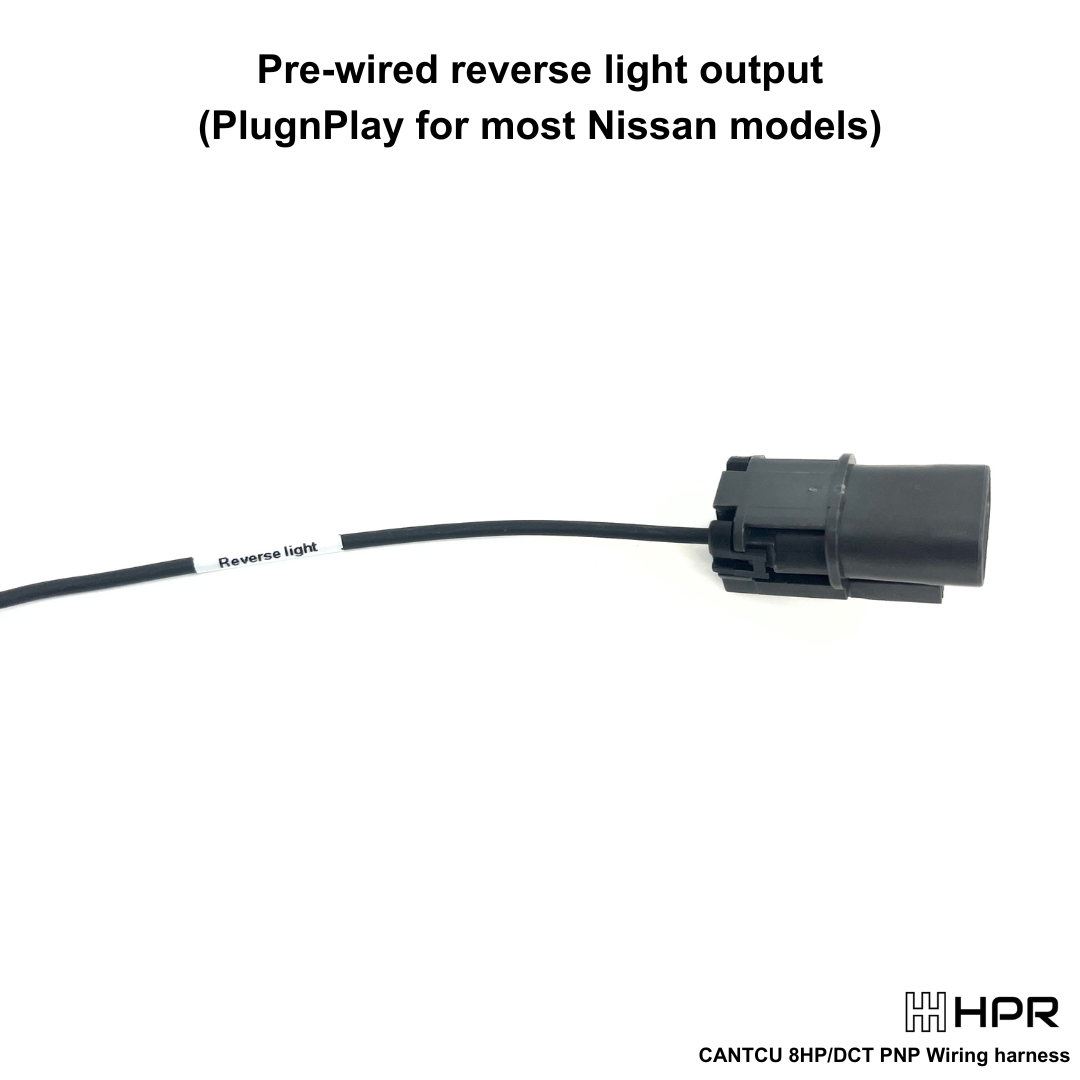

Relayed power supply and reverse light? Also PlugnPlay.

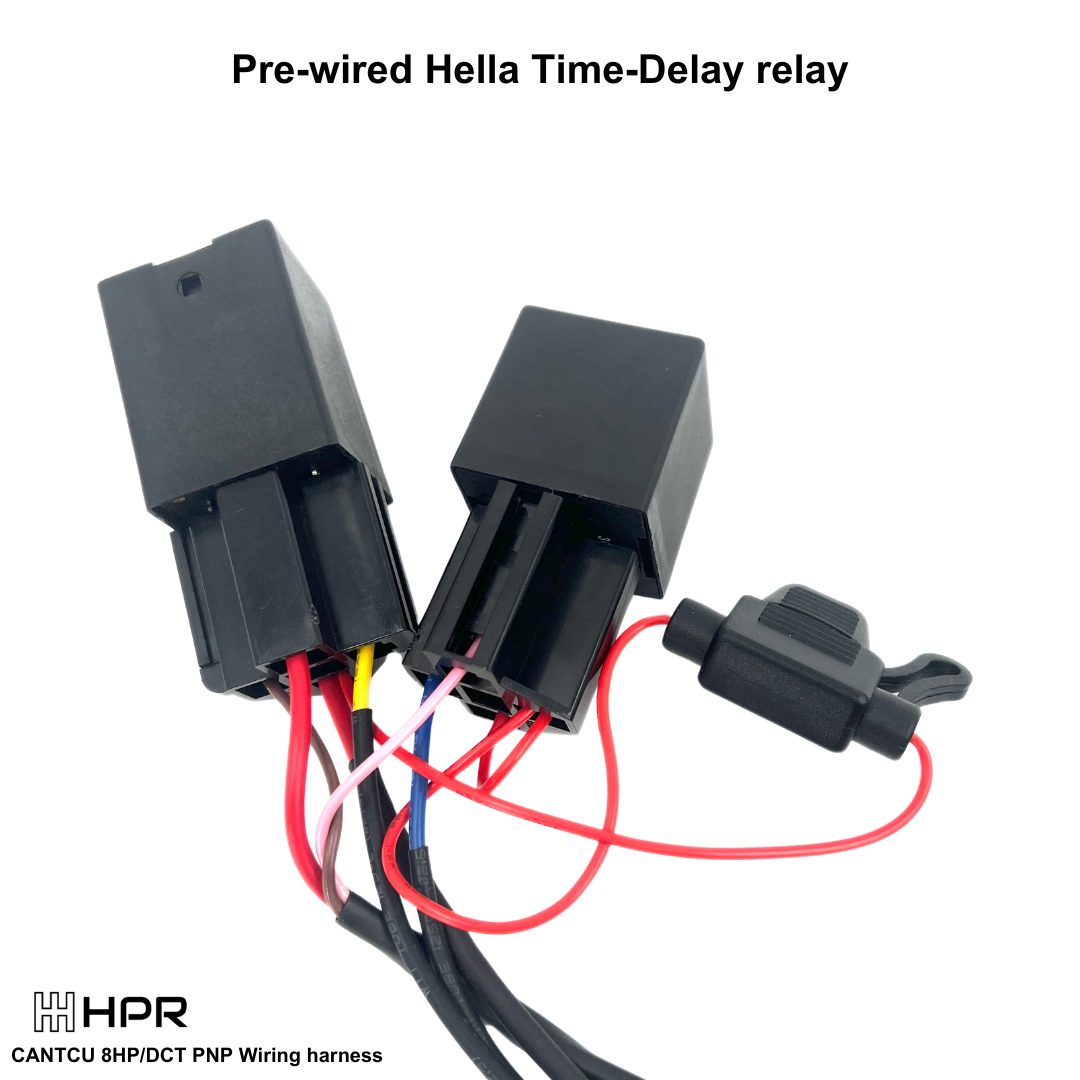

The kit comes with a high quality Hella time delay relay wired in as standard. (Required in most cases for Cantcu)

If you purchase the CANTCU controller together with the harness, you get a full 30% OFF the wiring harness.

Link to the CANTCU controller: HERE

(Discount applied during checkout)

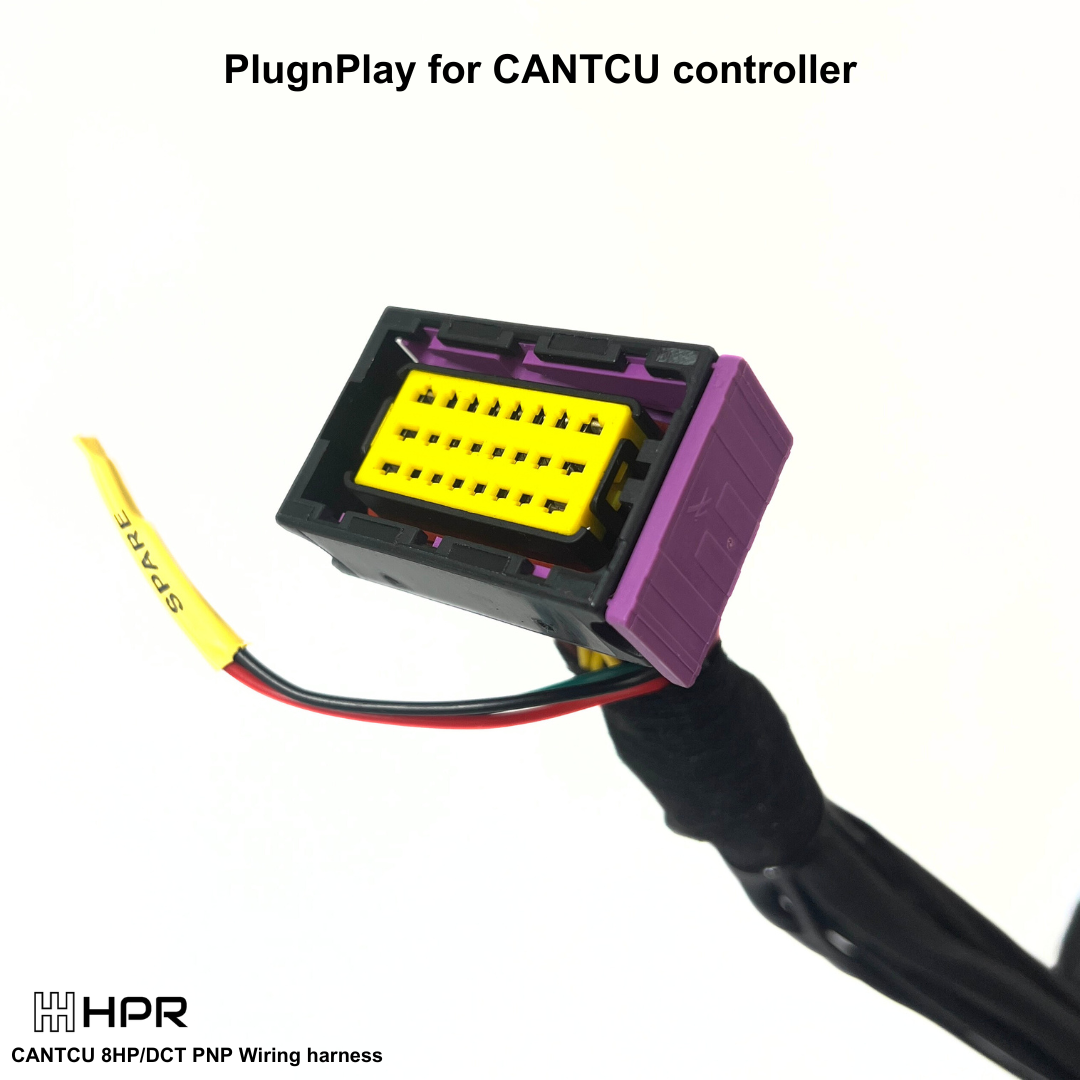

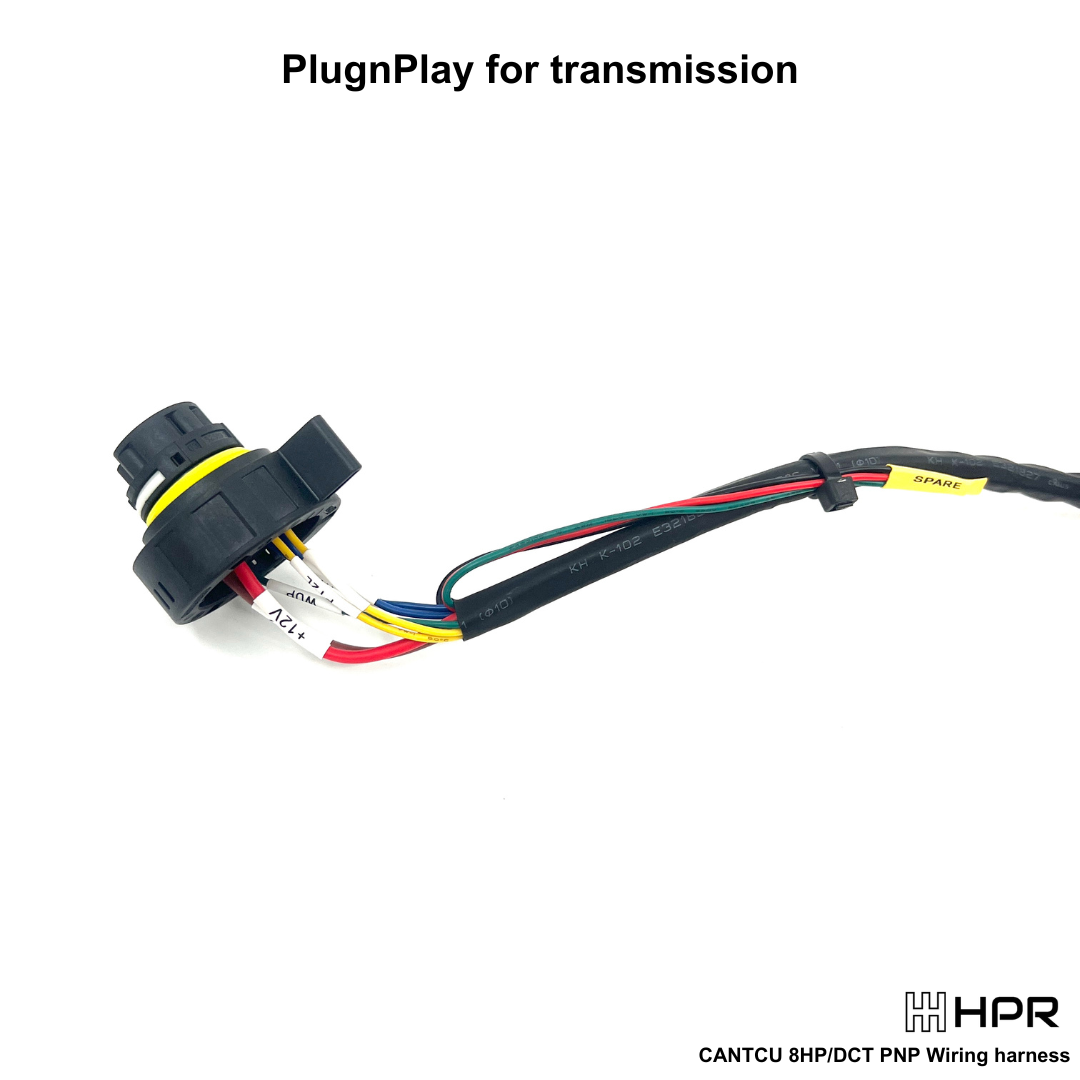

We have even added 3 extra wires that goes from the controller connector all the way to the transmission connector. These wires can be used to wire in an additional speed sensor, temp sensor, or any other sensor you,d like.

The wiring kit comes supplied with a high quality epdm wiring grommet that snaps right in our popular shifter plate for the Nissan S and R-chassis. The grommet size is 2" or 51mm.

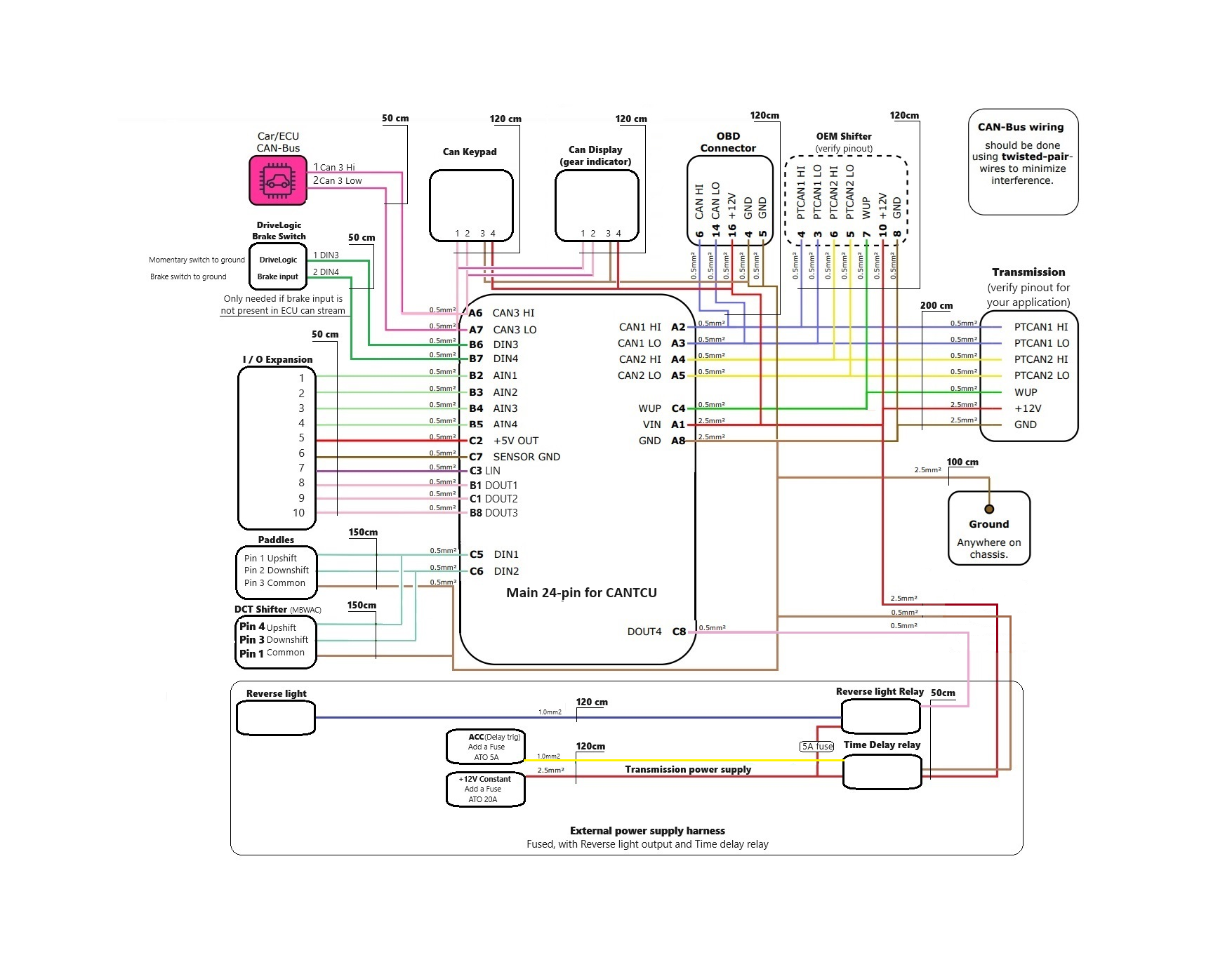

Our CANTCU 8HP / DCT PNP Wiring Harness comes as standard with connectors for:

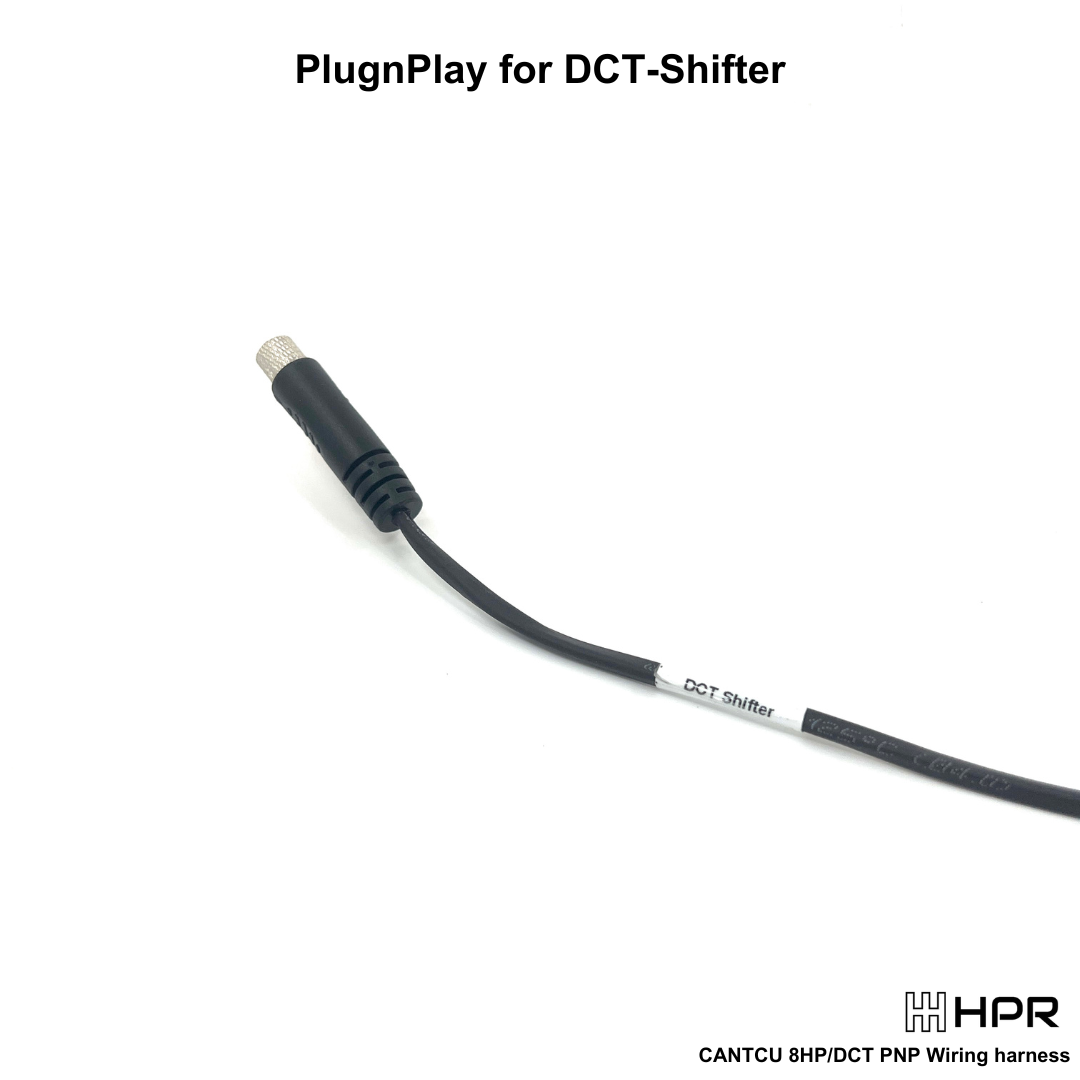

• DCT Shifter

• Paddles

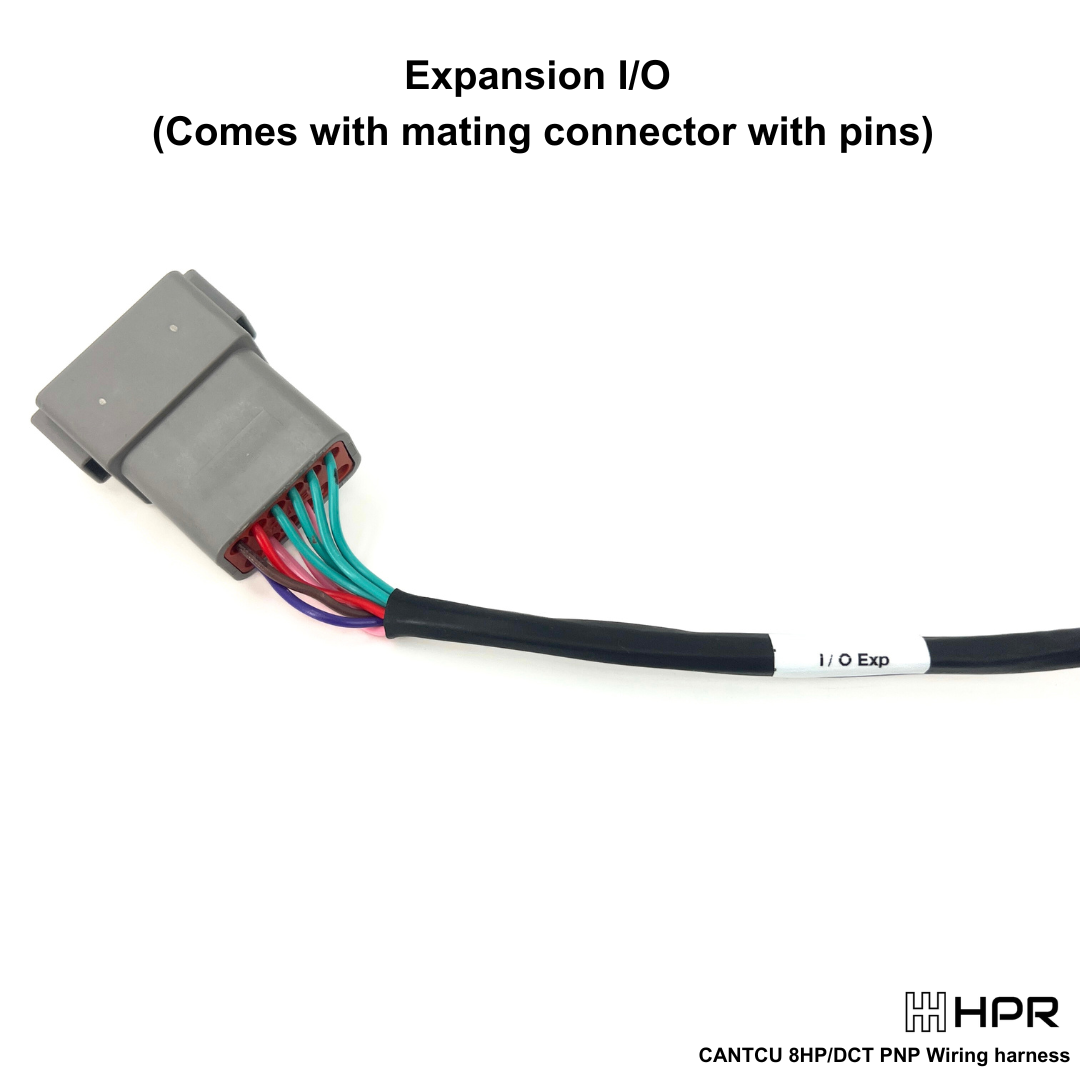

• I/O Expansion

• Drive logic / Brake switch

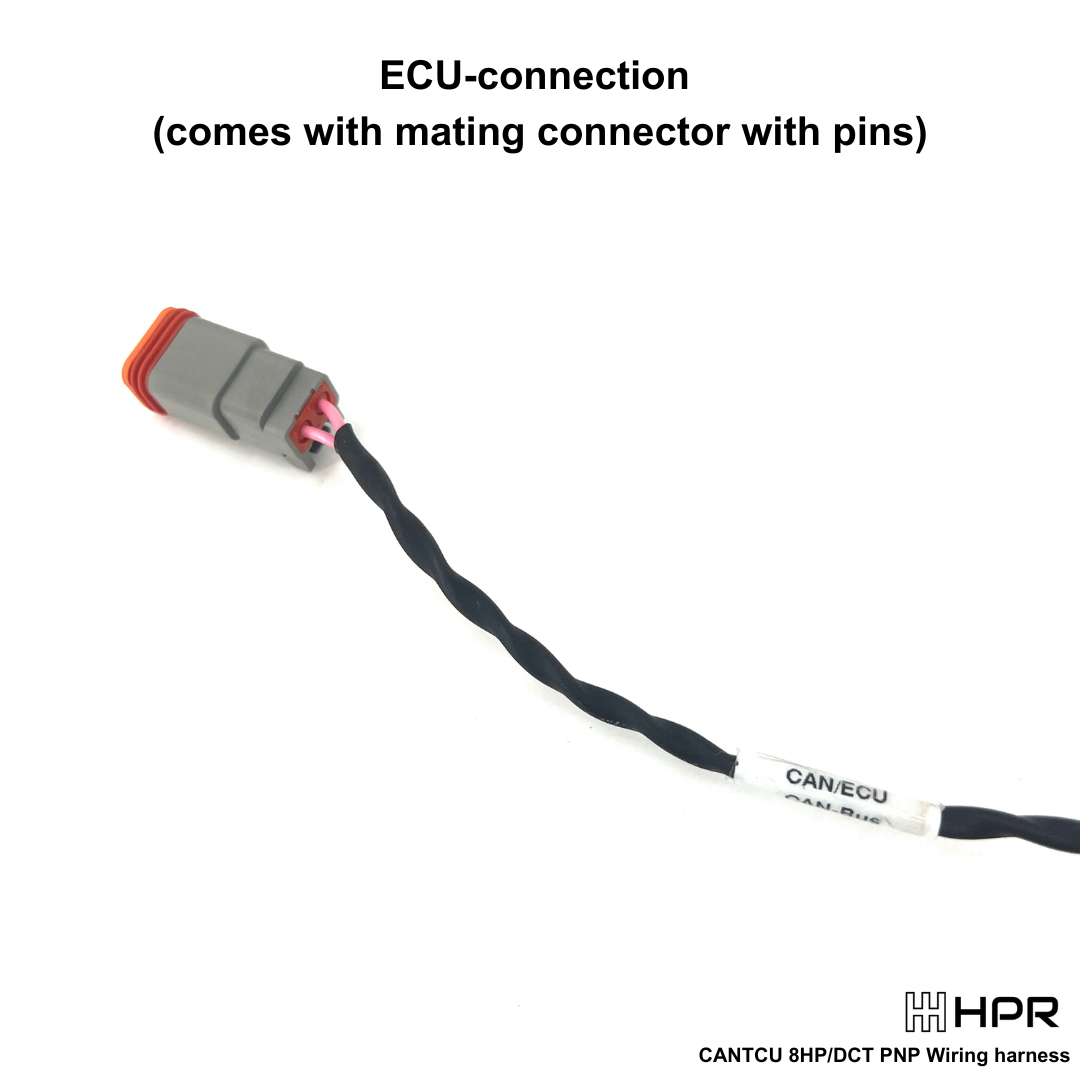

• Car/ECU CAN-Bus

• CAN Keypad

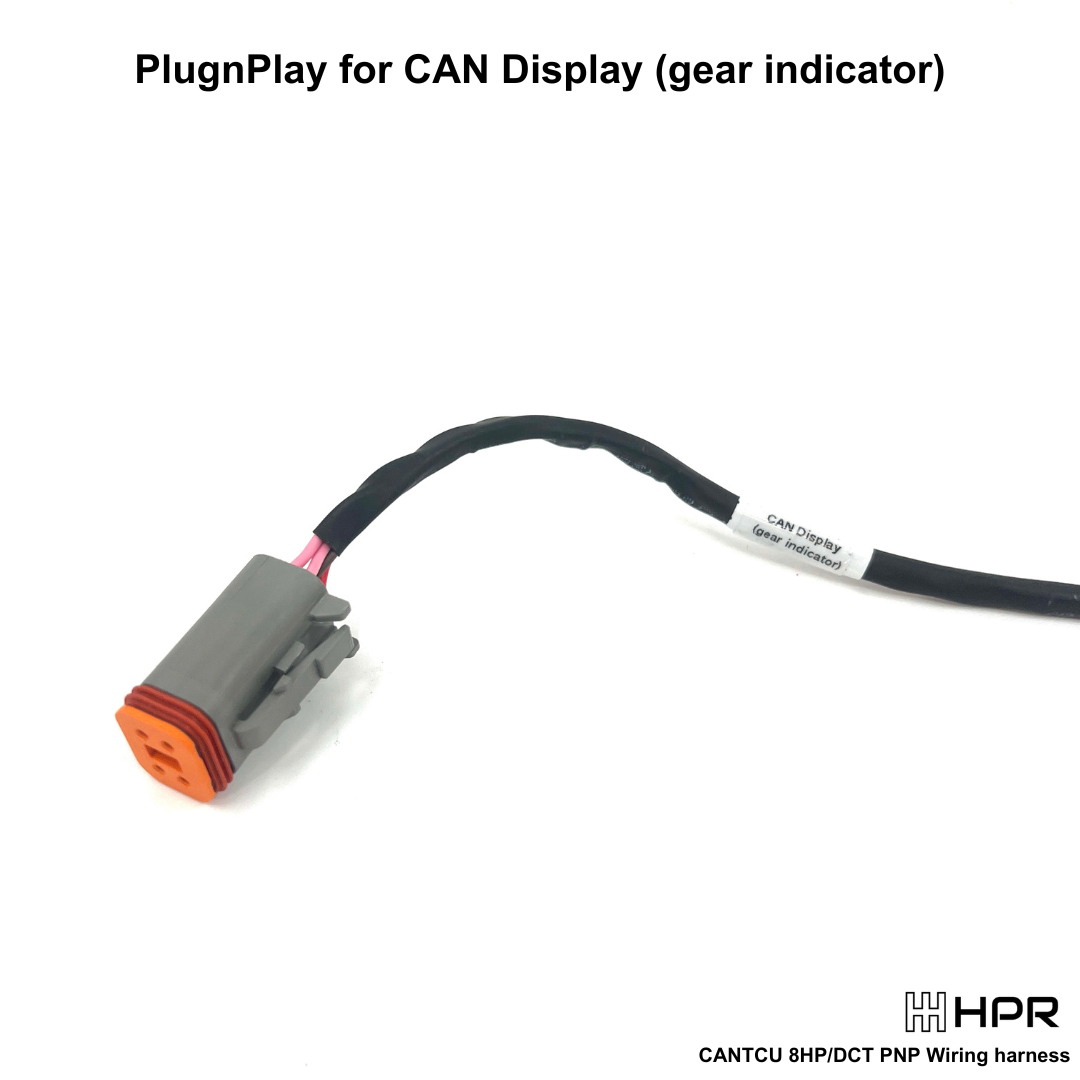

• CAN Display (gear indicator)

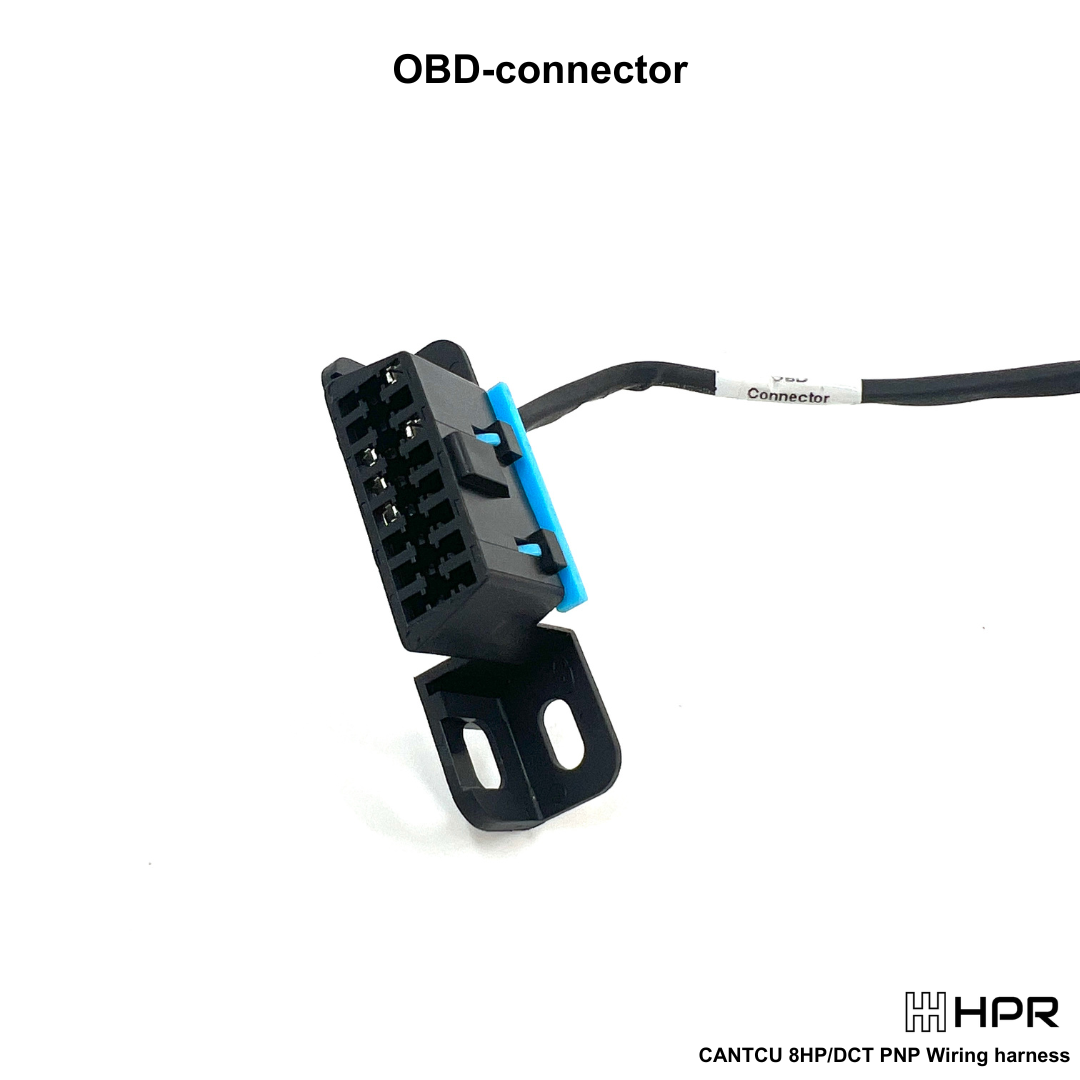

• OBD connection

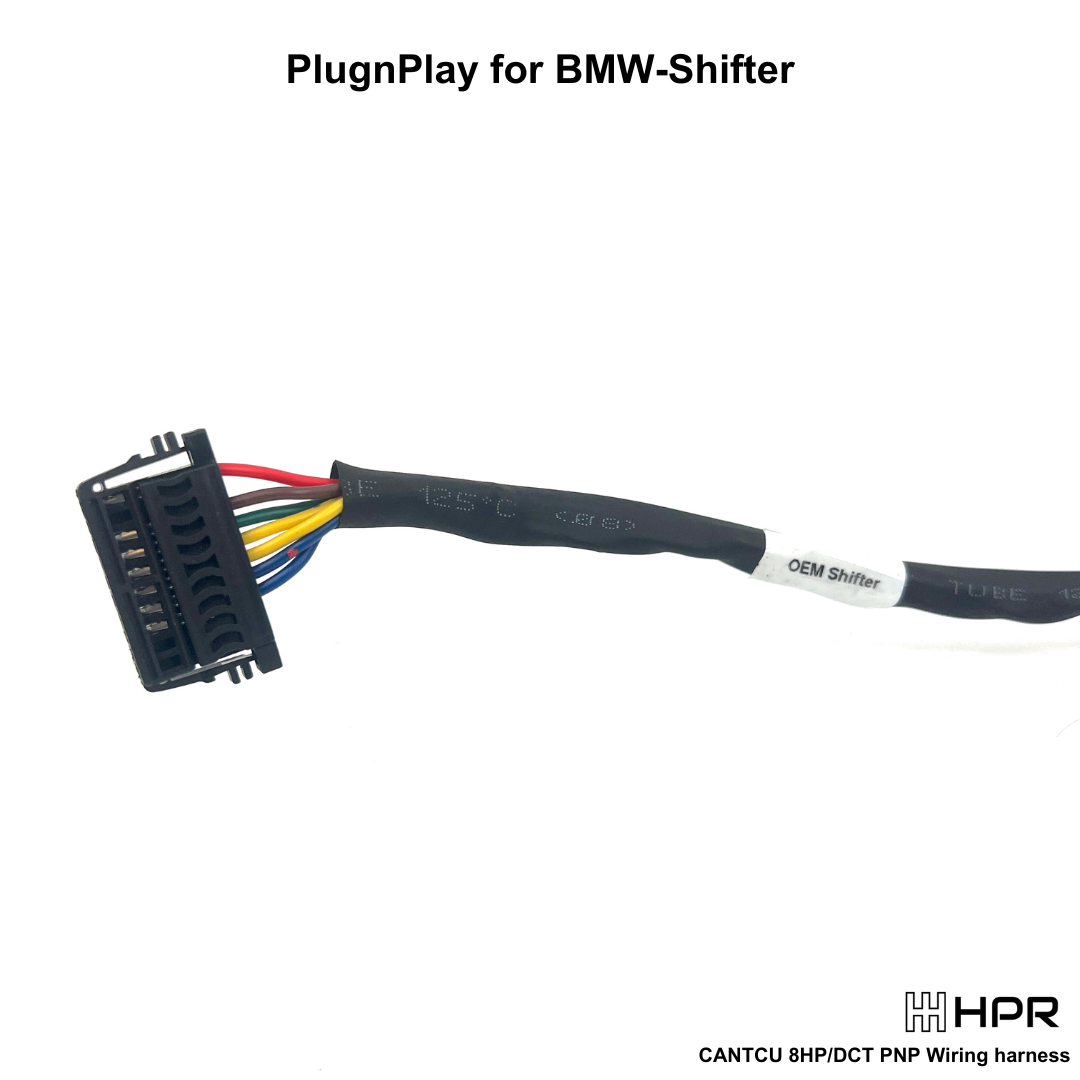

• OEM Shifter (BMW 10 pin and A90)

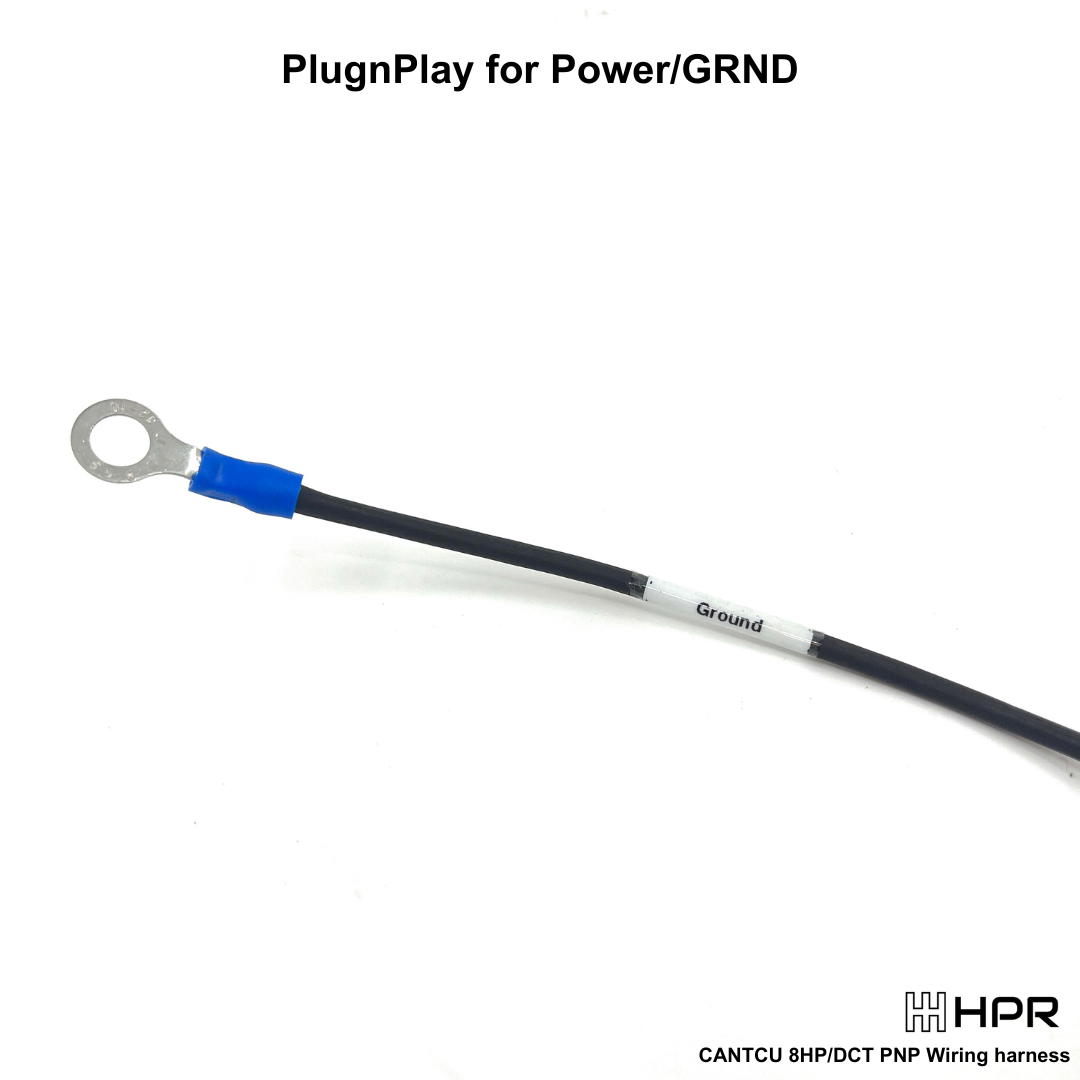

• Ground

• Reverse light

• ACC with 5A fuse

• +12V constant with 20A fuse

Note:

** DCT-shifter need to be purchased together with the wiring harness to guarantee plug and play fitment, as they are supplied with both male and female connections from the supplier.



** Paddles need to be purchased together with the wiring harness, and we will make it plug and play for you, free of charge.



** Only CAN-keypad sold through us will guarantee a plug and play solution, but most blink marine keypads will also be pnp.
