designed and engineered by hpr

HPR 8HP output flange

2.899,00 NOK

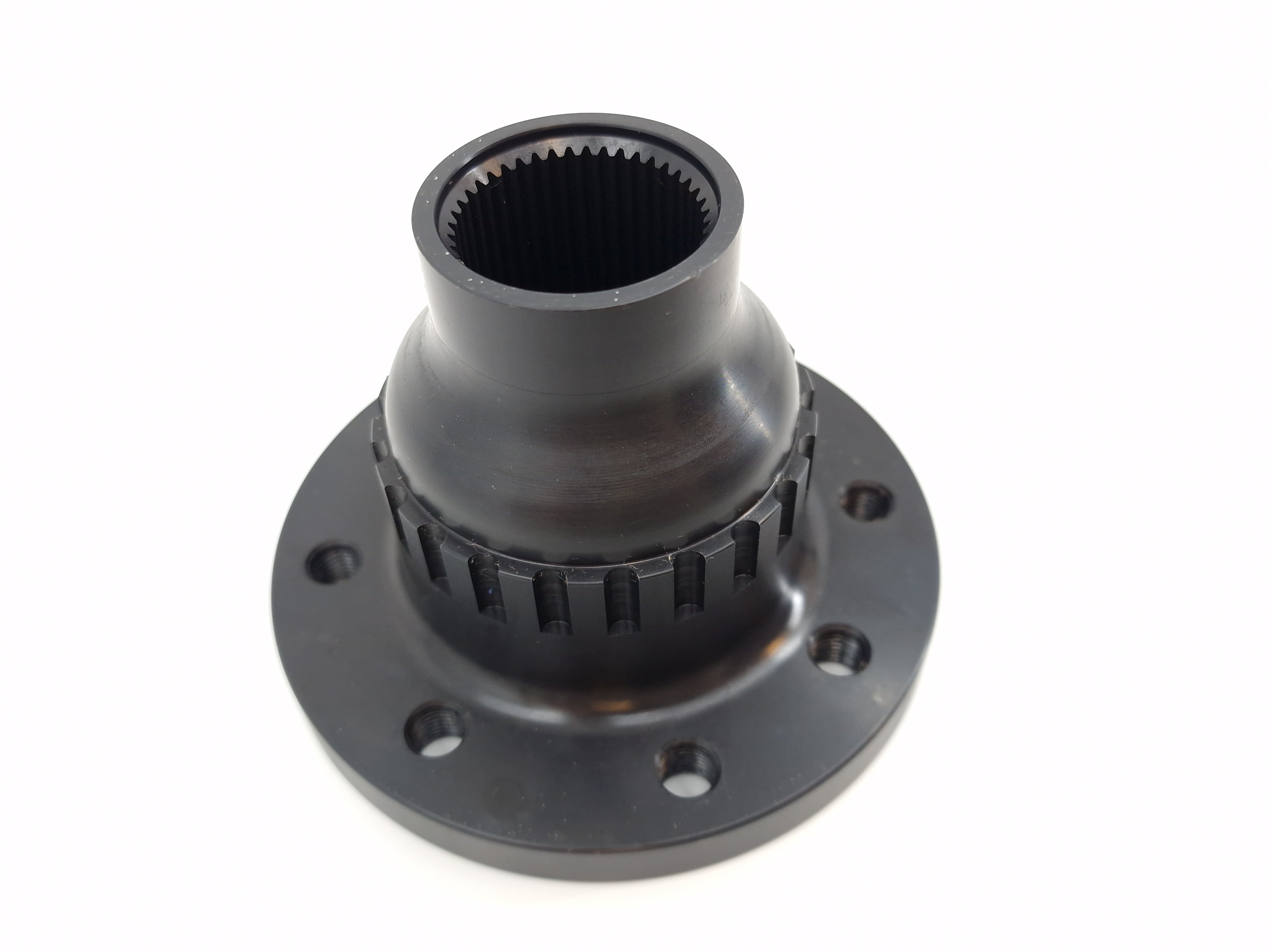

HPR 8HP output flange 2.0



This flange bolts directly to your 8HP output-shaft, and enables you to use the common and beefy 1350 u-joint flange, Toyota or Nissan bolt pattern/pilot.

CNC machined out of 4140 chromoly, thru hardened for ductility, and case hardened for high surface hardness.

After the dual stage hardening process, its polished and Zinc coated black.

Comes with a pilot to perfectly centre the propshaft for all 3 variations.

Machined  speed pickup tooth integrated to the flange



Optional

12 Point 34mm deep socket for flange removal/install

This type of socket is not something people have in their toolbox, and it's surprisingly hard to find in many areas.

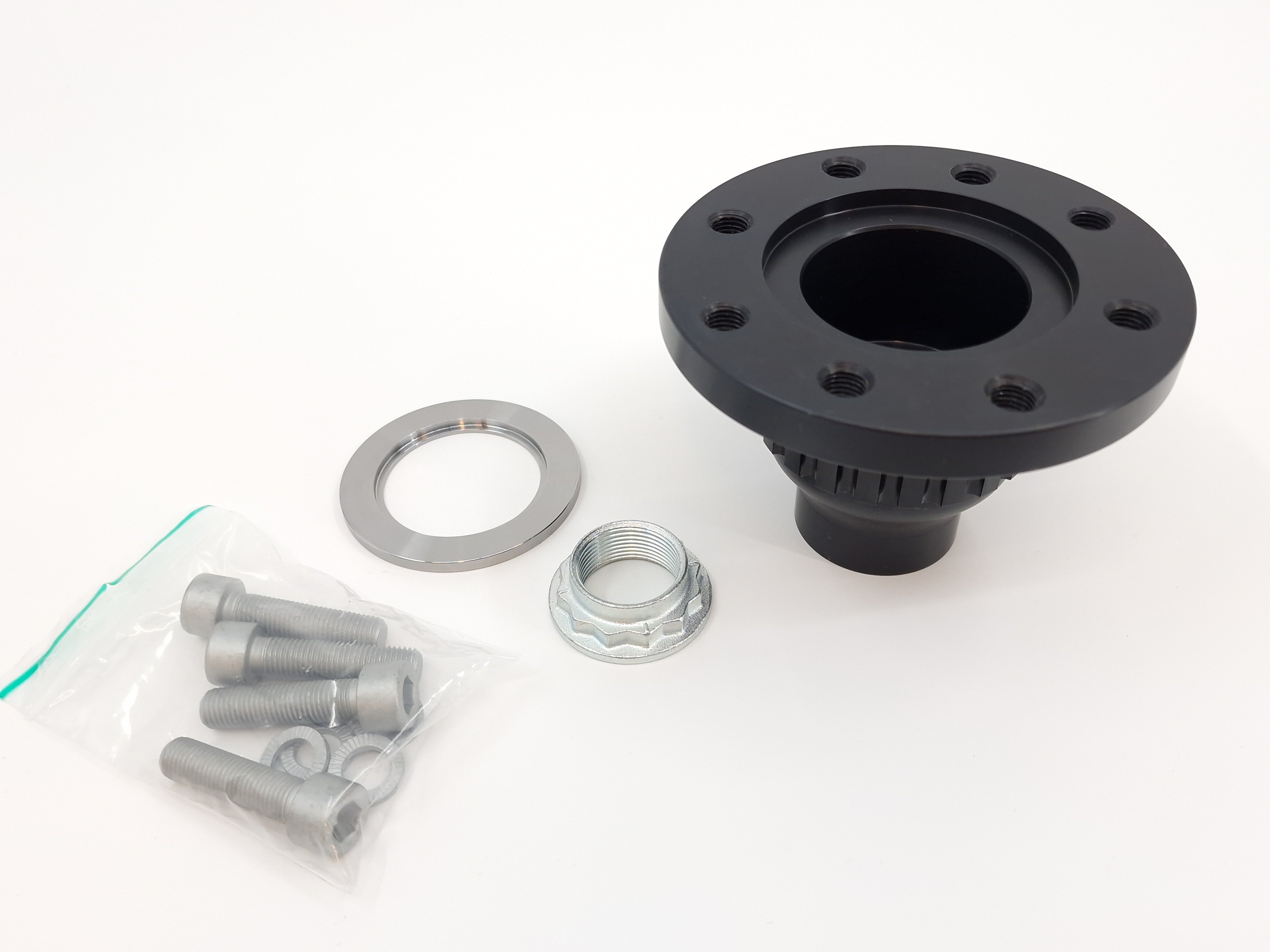

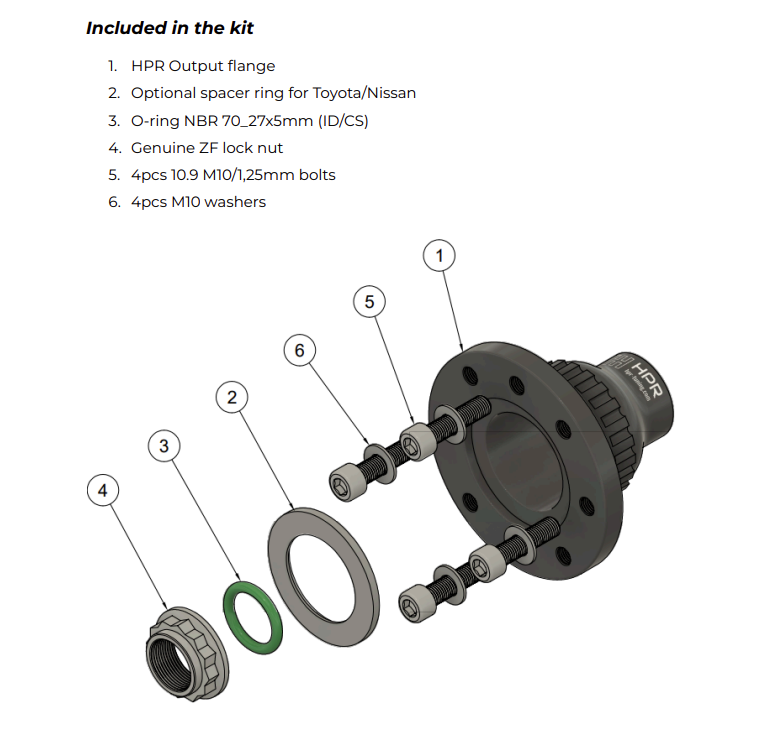

Included with the flange

4x High tensile bolts

4x Nord-lock washers

1x New genuine ZF locknut for flange

1x Seal for spline

1x stepped pilot ring for Toyota/Nissan propshaft

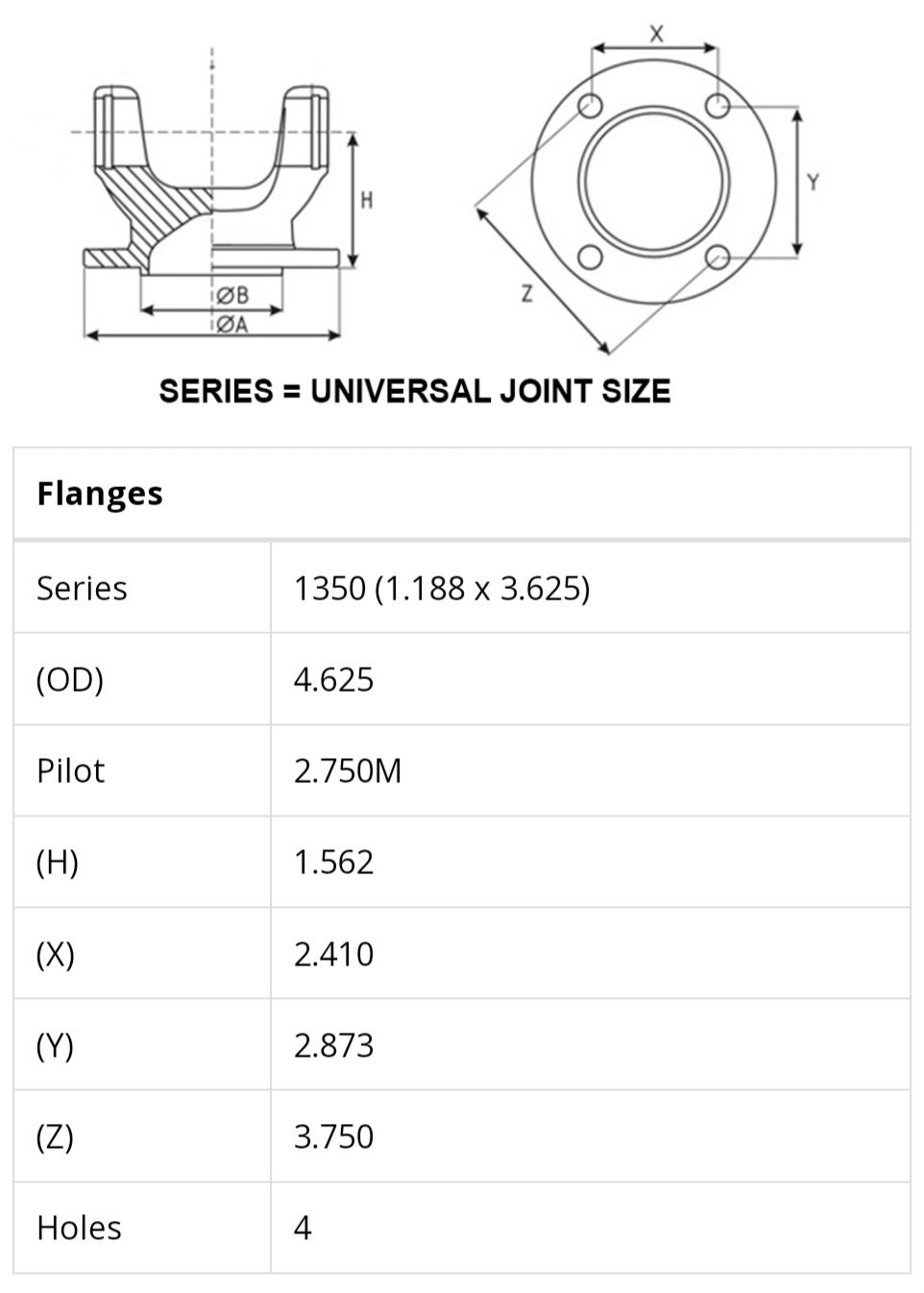

Compatible 1350 yokes

Sonnax T3-2-119A (Aluminum)

Dana_Spicer 2-2-1789 (steel)
