RB cam baffle plate kit with cam studs

Name: RB cam baffle plate kit with cam studs
Brand: HPR
SKU: HPR-RB-CAM_BAF-C_STUDS-BHM
Price: 2499.0 NOK
Availability: InStock

SKU: HPR-RB-CAM_BAF-C_STUDS-BHM

2.499,00 NOK

Gasket kit:

Please add gasket kit with billet half moons No thanks i have gasket kit

Variant

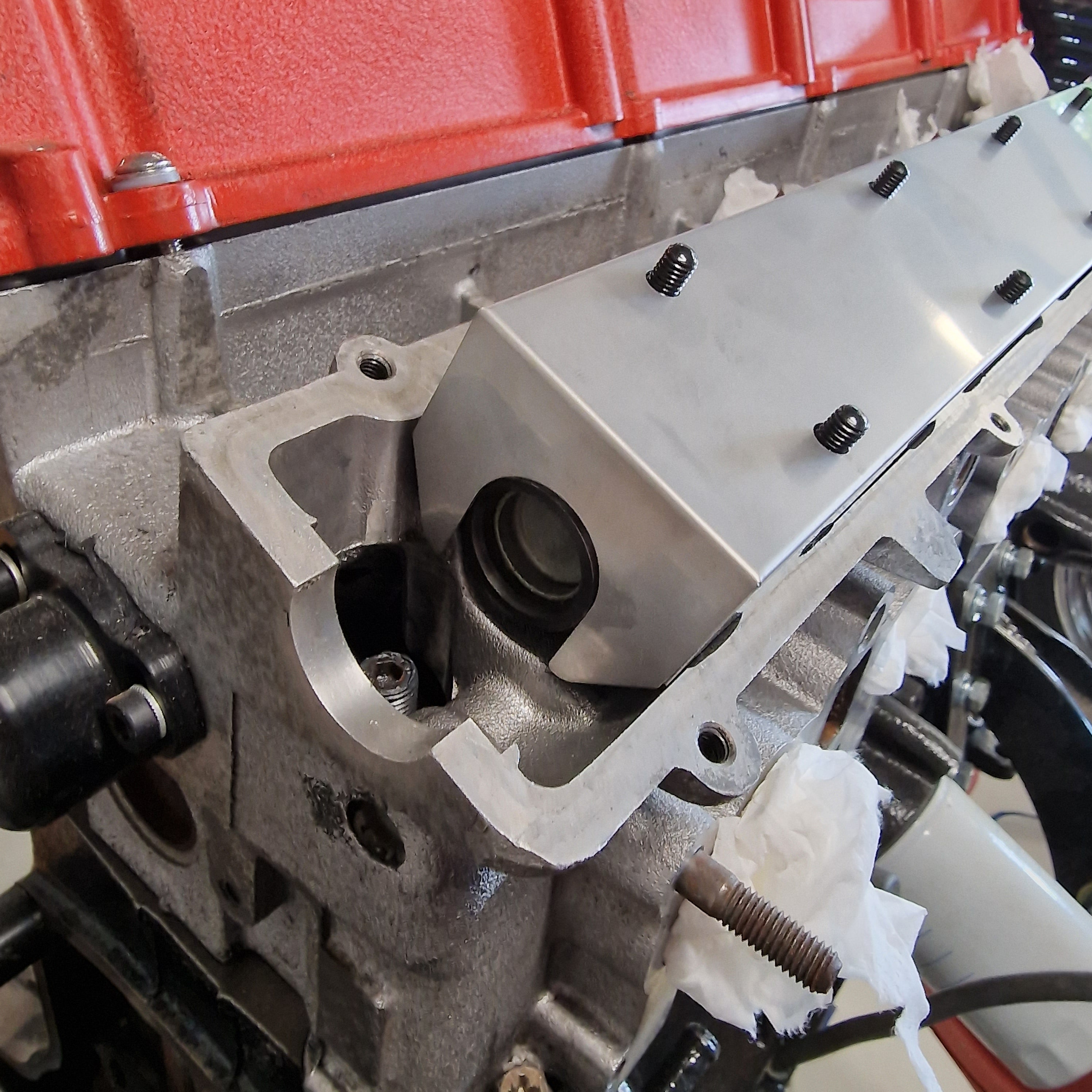

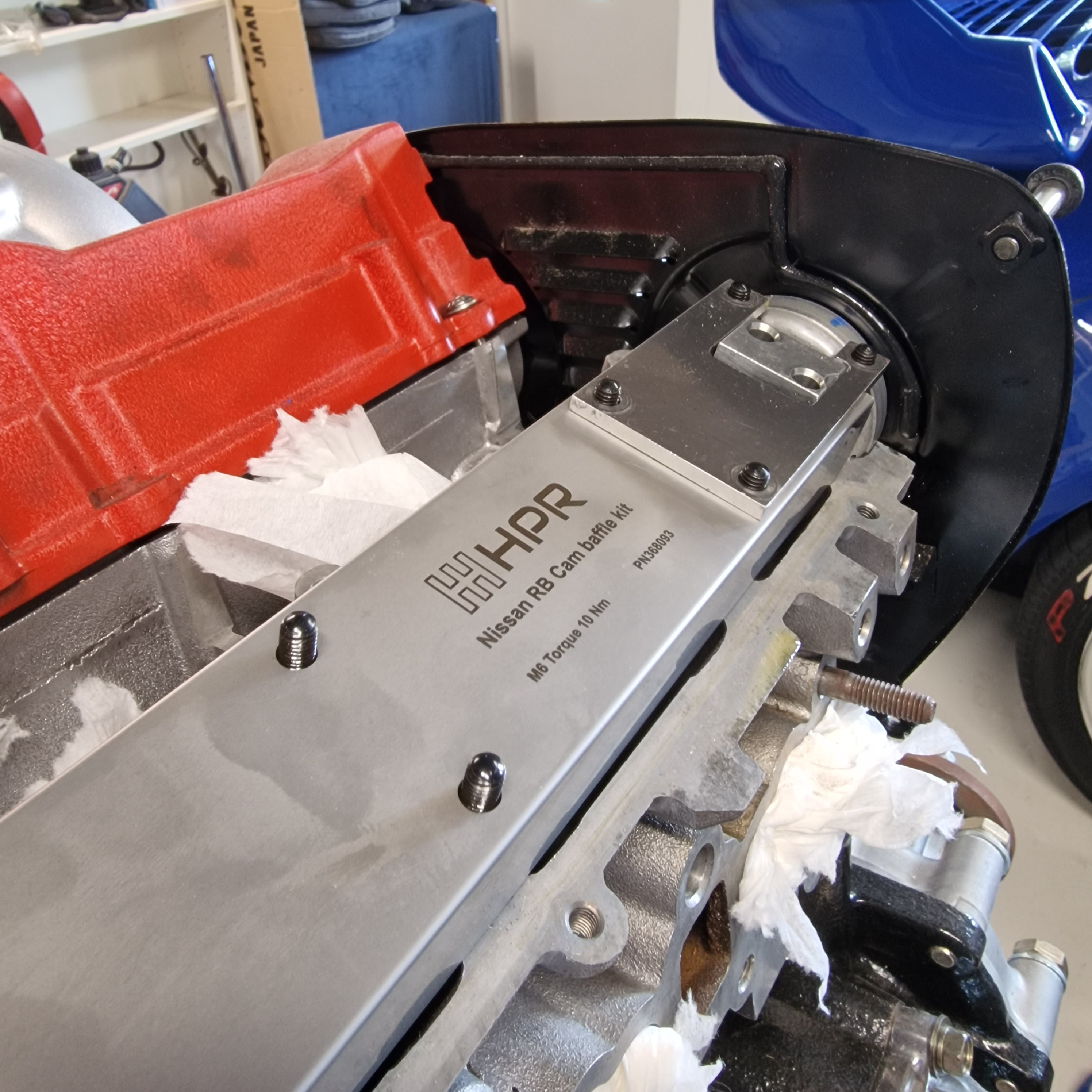

HPR cam baffle plate
The HPR cam baffle plate is especially designed to separate oil lubrication and air blowby in order maximize oil damp separation before it exits the head. CFD tested with blowby simulation of a RB head under full boost/RPM conditions.

The covered section you see at the end of our baffle kit greatly reduces the flow under the baffle, forcing the blowby to go on top of the plate.

Forcing blowby on top of the covers reduces the oil going up to the covers, and all the surface area on top of baffle and inside the cover separates oil from the air as an added bonus.

This kit is ideal for use with both OEM RB covers and aftermarket covers

RB cam-stud kit
Designed to be used on cam lift profiles up to 12.00mm lift and 10,000 RPM.The studs feature maximized thread engagement in the head for increased overall strength.
The total height is also reduced in order to get the needed clearance to the covers.The studs are made of high tensile strength material that supersedes Grade 5 titanium. (12.9 class)

Fitment
The stud-kit will fit both our G-mod covers and the OEM RB26 covers.
Fits all RB tvin cam heads

In the box

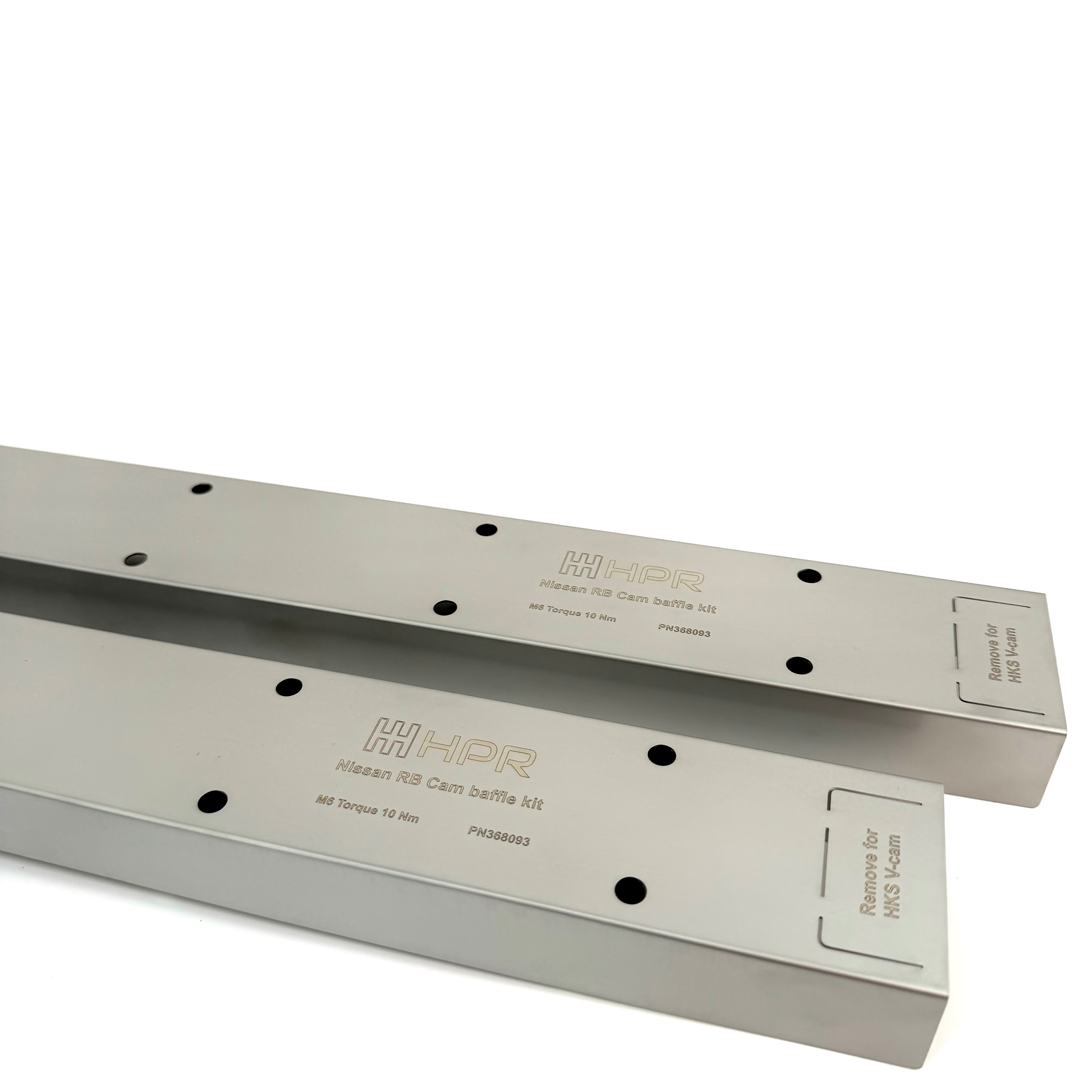

2X HPR Cam baffle plates

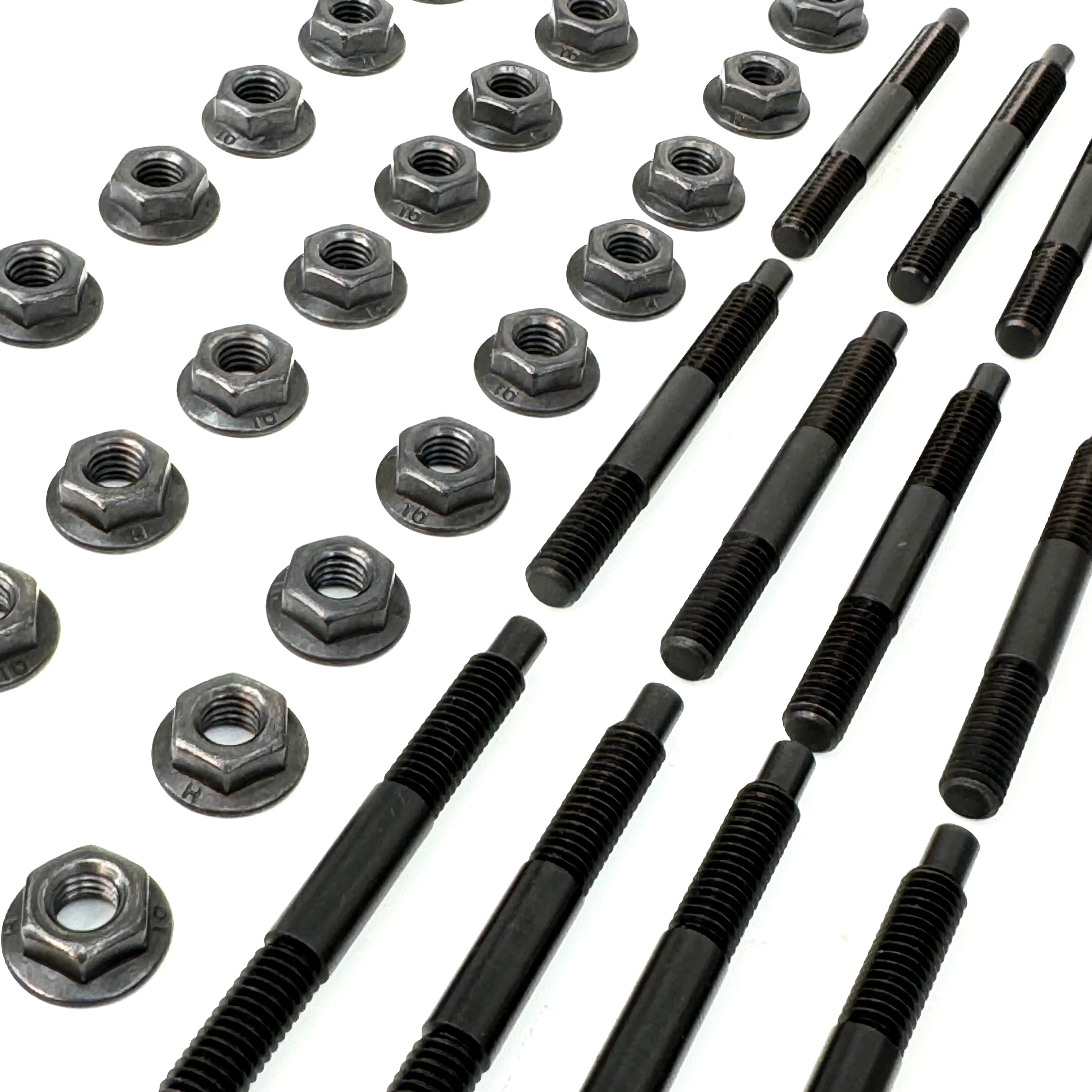

28x HPR Cam Studs
56x flange nuts
Printed Installation guidelines

Note
-Trimming needed for sensor/plate with HKS V-cam.
-Trimming required inside RB20/25 covers (not needed on RB26 covers)

-HKS cams need additional clearance at the rear og the cams due to larger diameter. Simply bend the rear section by hand 3-4mm to allow for clearance.

-Some HKS cast variations will require minor clearancing inside the covers as they deviate from the OEM internal dimensions.
