HPR DCT oil cooler kit
A complete high quality oil cooler kit for your 8HP transmission.

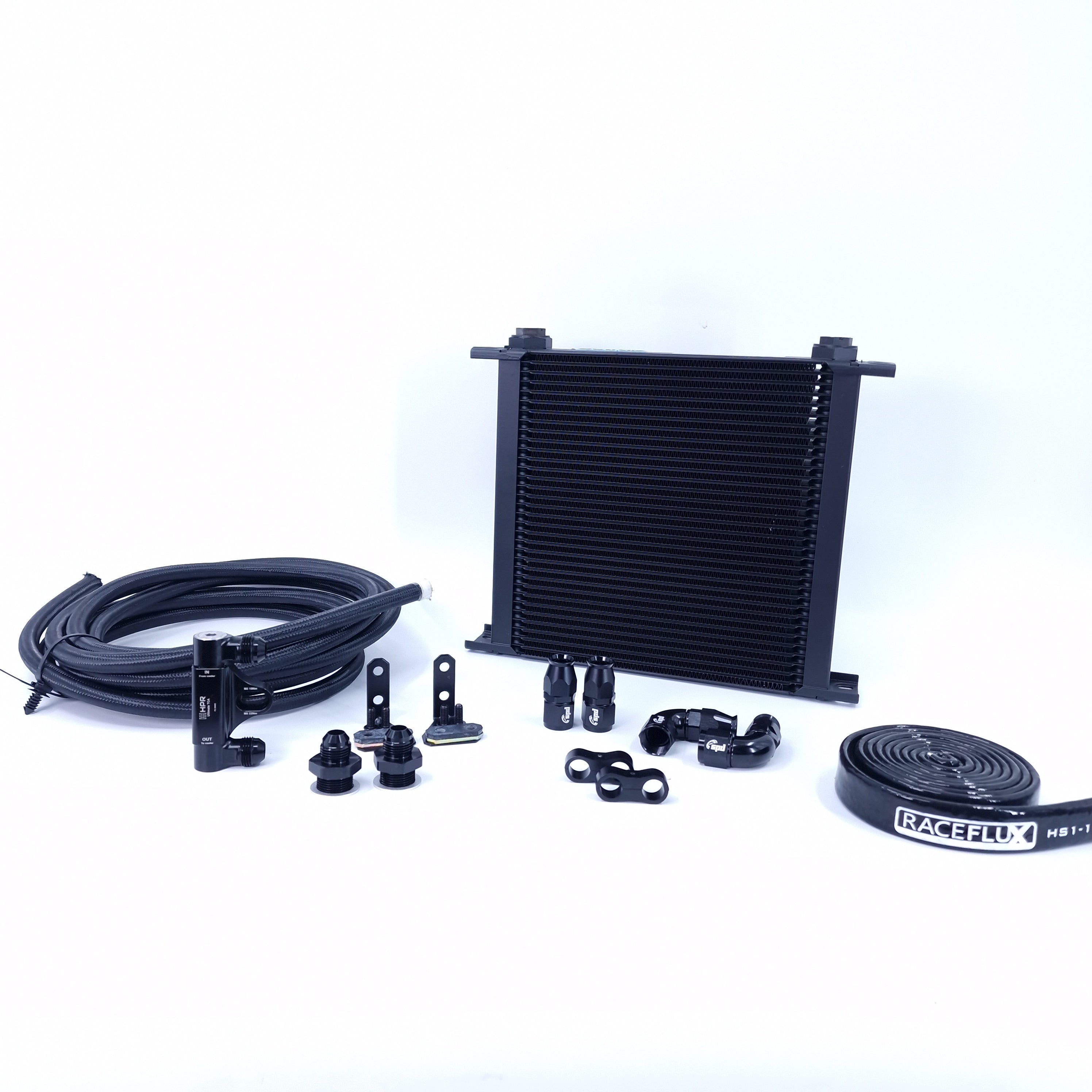

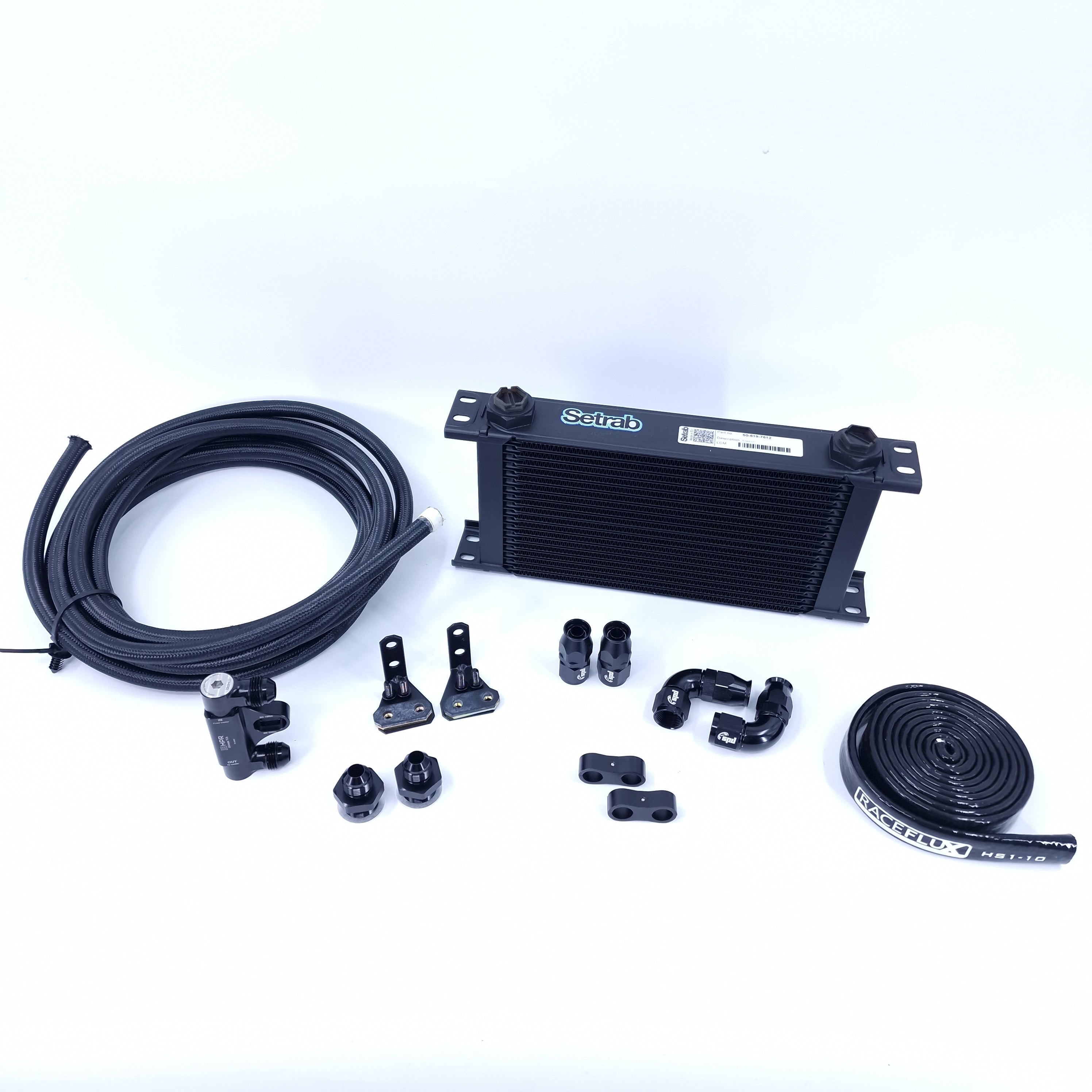

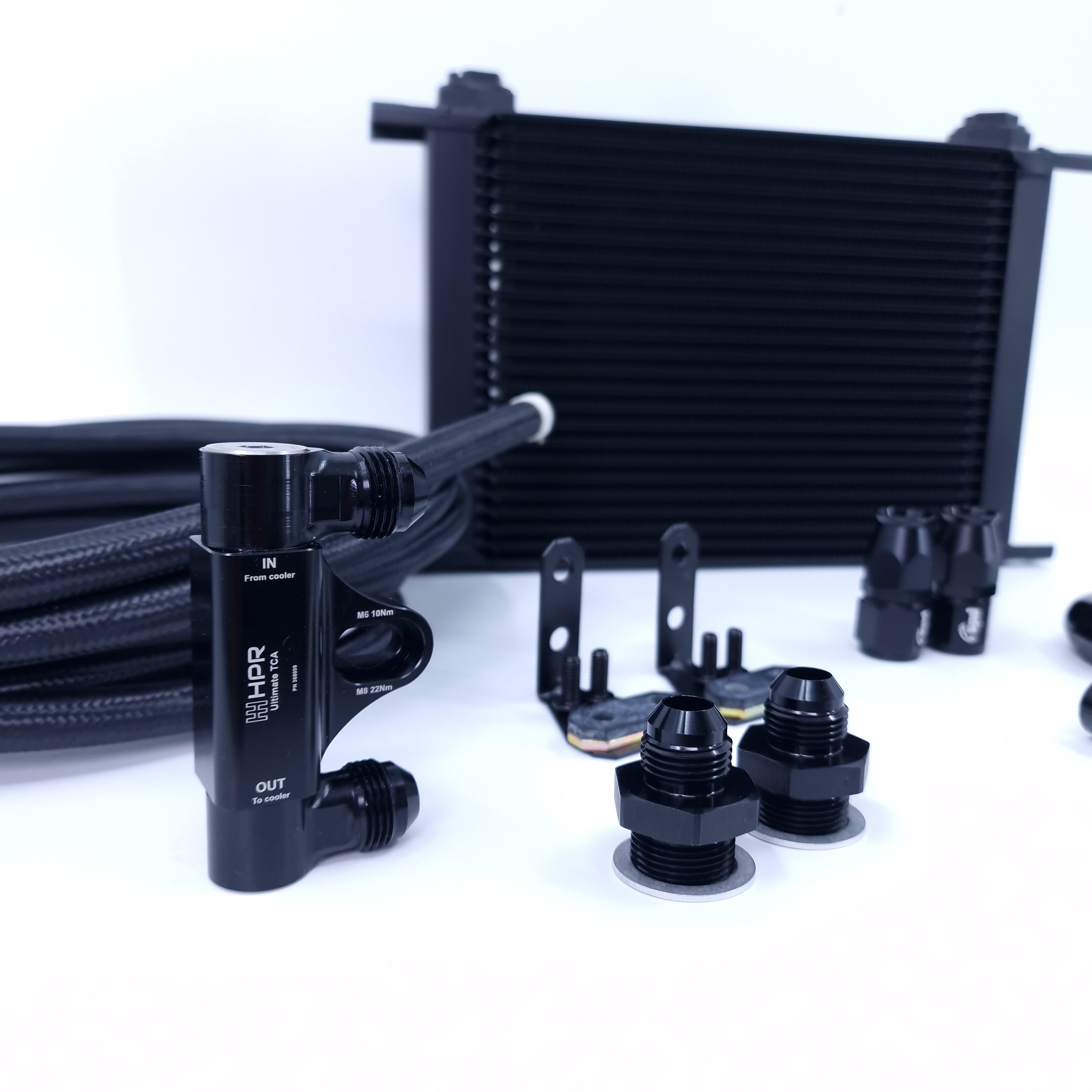

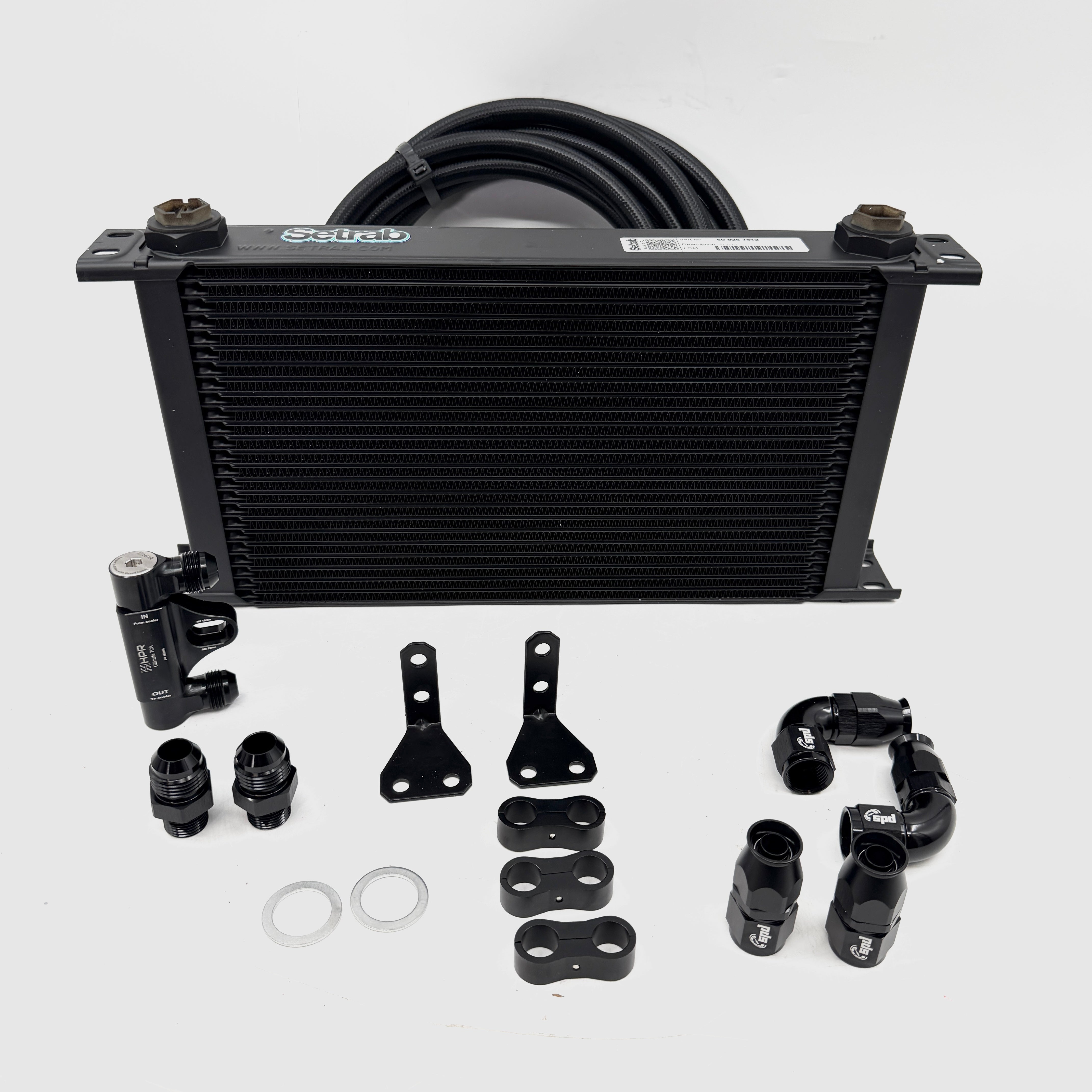

The kit includes

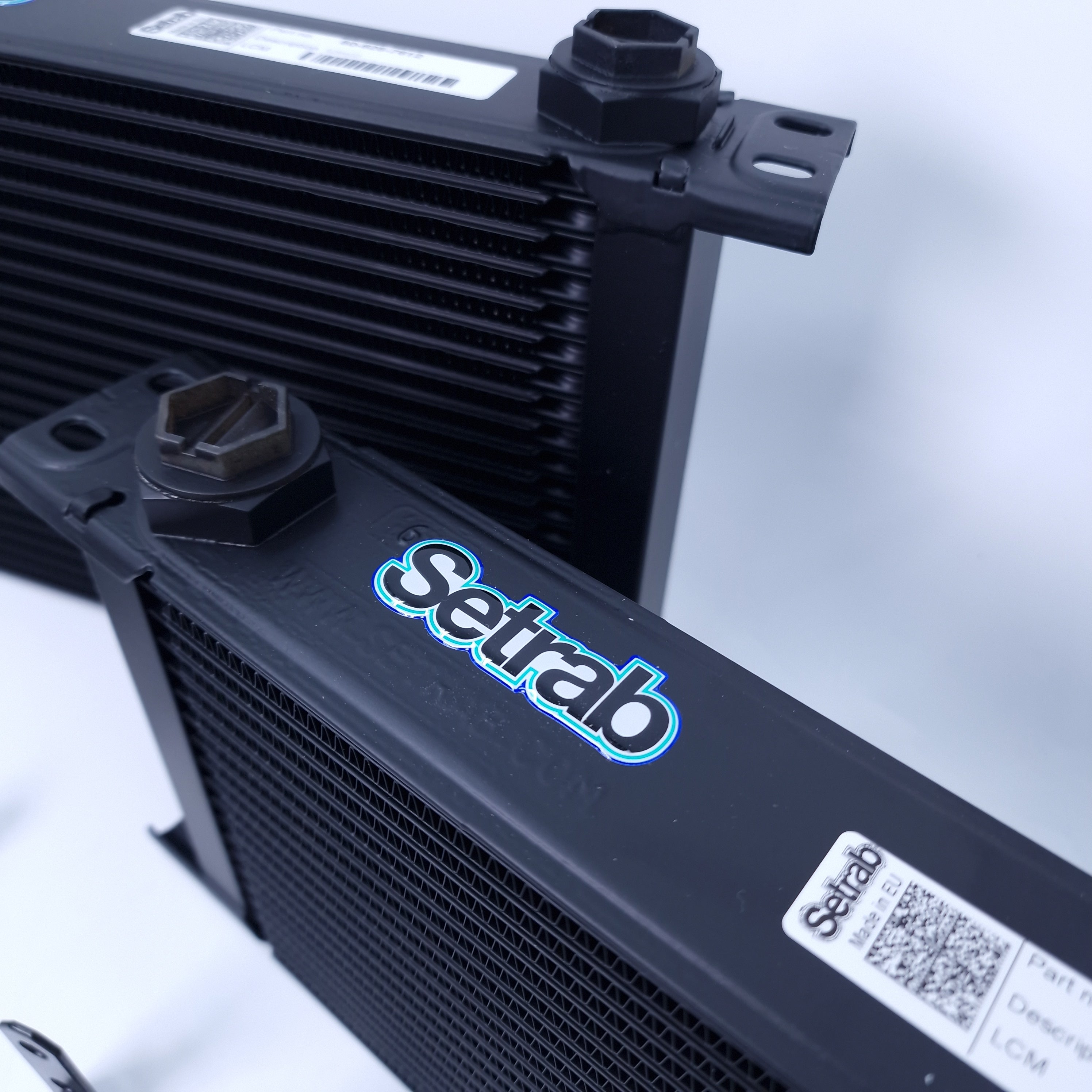

- Your choice of Setrab oil cooler
- Setrab Mounts with Installation hardware
- Setrab An 8 adapters

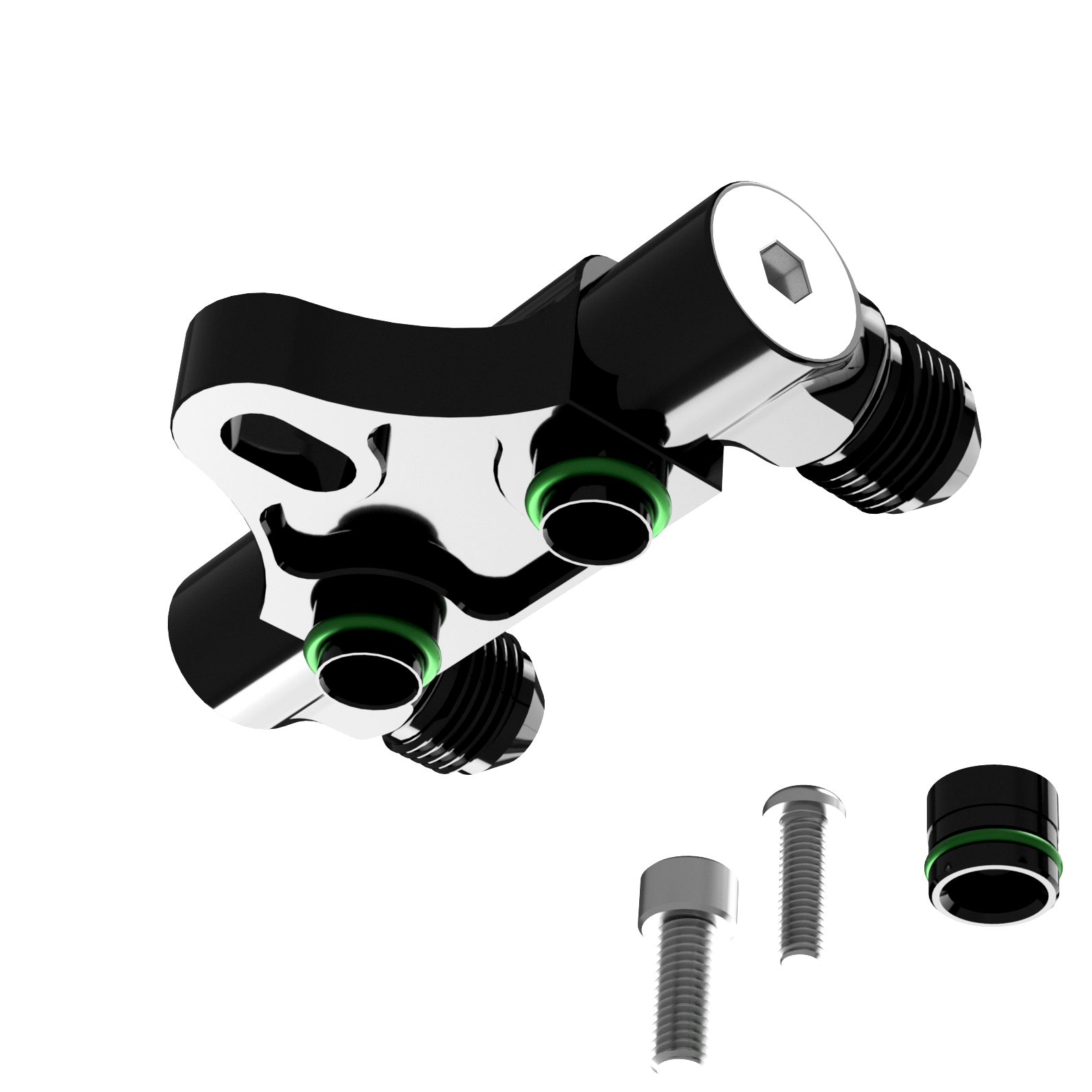

- HPR Ultimate TCA

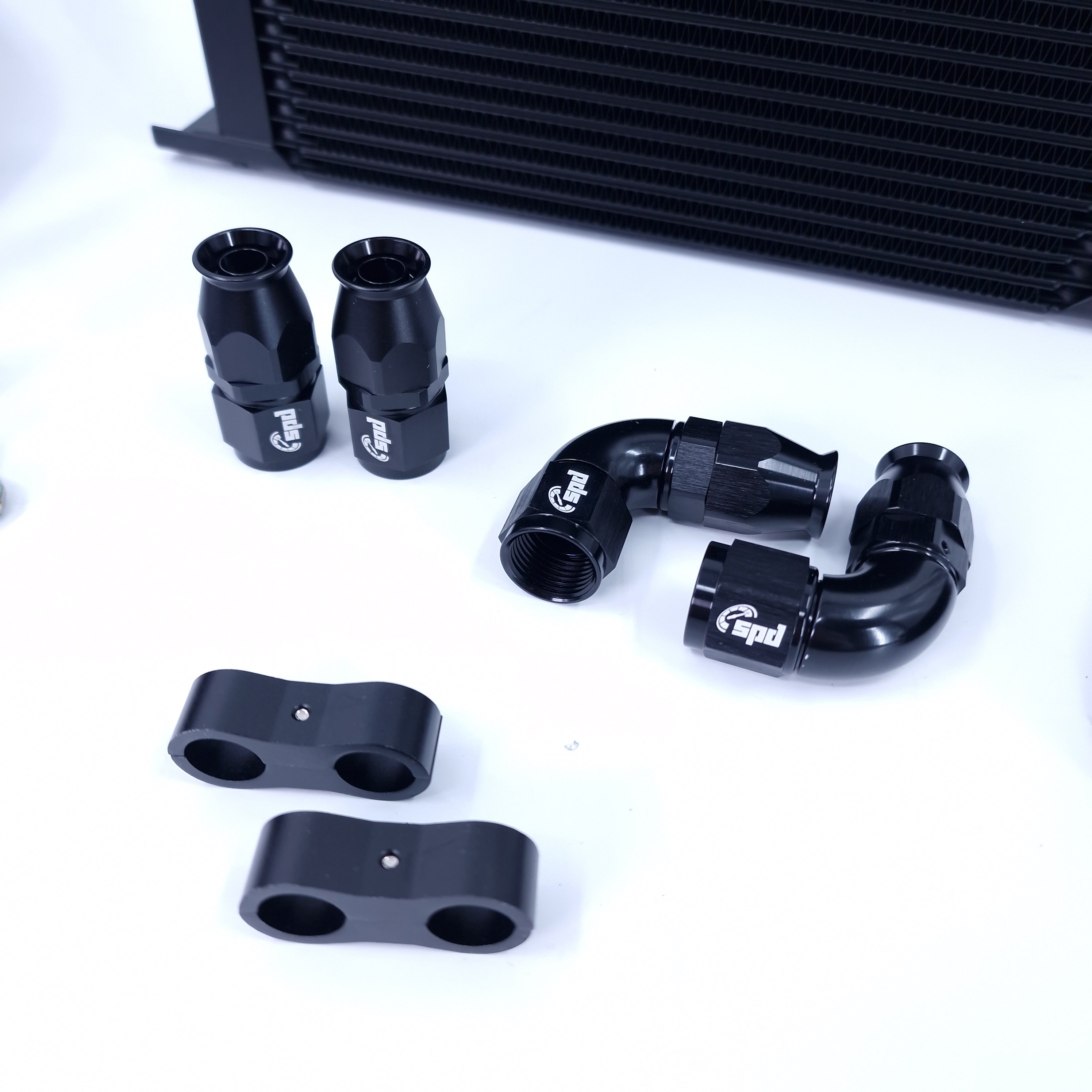

- 2x AN8 connectors 90 Full flow PTFE
- 2x AN8 hose end straight PTFE
- 2x Setrab to AN 8 fitting
- 5m AN8 nylon braided PTFE hose
- 3x Double brackets for a neat install.
Why Upgrade?
The factory BMW G8X transmission cooler was designed for a vehicle weighing up to 1,850 kg and producing approximately 550 hp.
Our Setrab motorsport coolers provide increased cooling capacity for tuned, track-driven, and high-performance vehicles operating beyond the factory design limits.

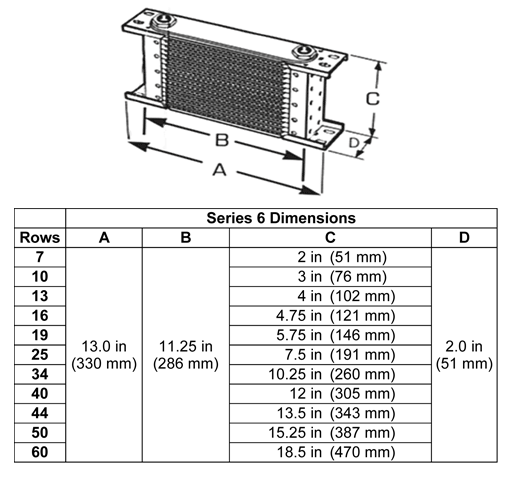

| Cooler | Core Size | Increase vs OEM BMW Cooler |
|---|---|---|
| OEM BMW G8X | 553 × 155 × 28 mm | Baseline |
| Setrab 625 | 283 × 193 × 50 mm | +13.8% core volume |
| Setrab 925 | 358 × 193 × 50 mm | +43.9% core volume |
Both Setrab coolers feature a 78.6% thicker motorsport-grade core than the factory BMW cooler, improving thermal capacity and heat rejection during sustained high-load driving.

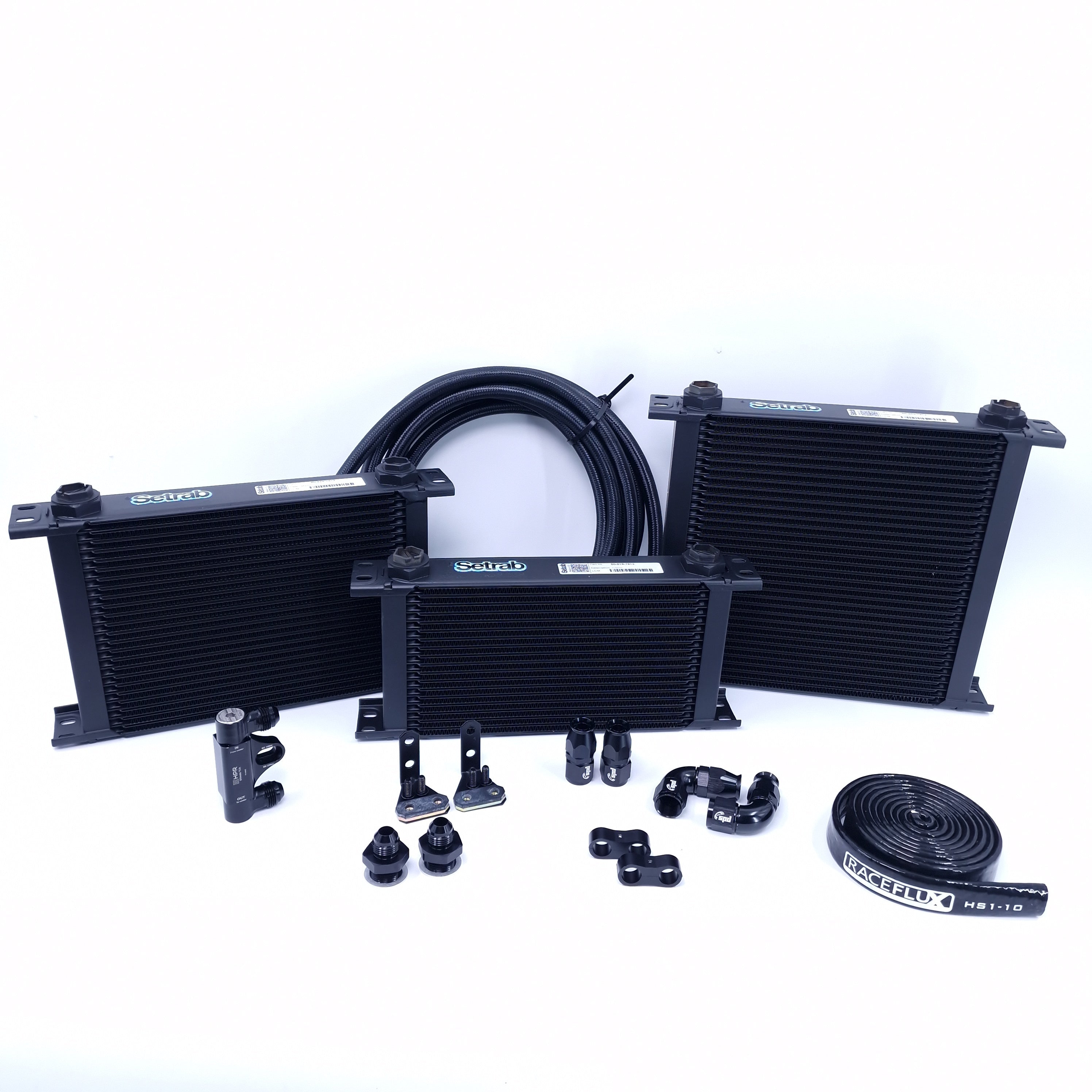

Which Cooler Should I Choose?

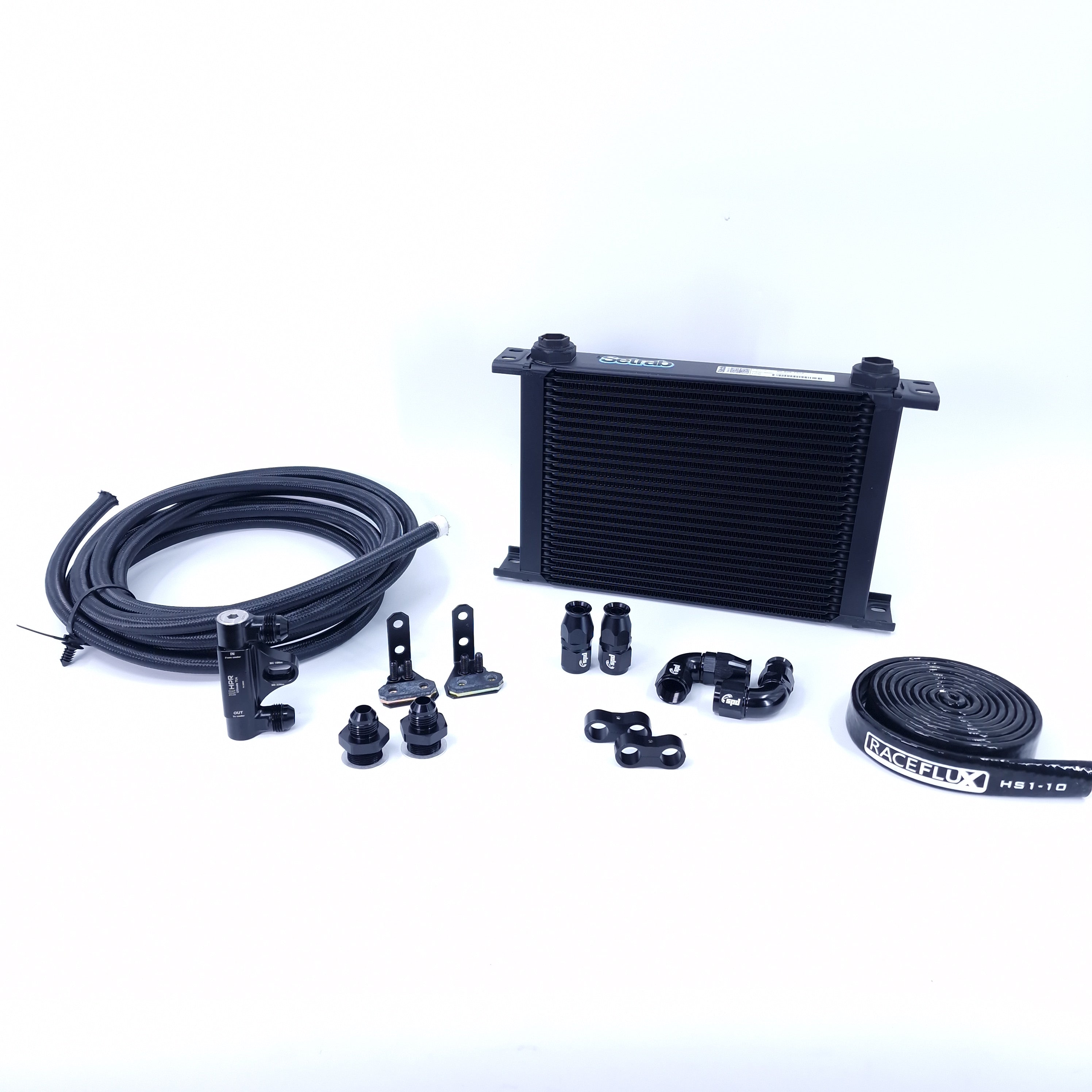

Setrab 625
- Recommended for vehicles producing up to 800 hp
- Suitable for vehicles weighing up to 2,000 kg
- Ideal for fast road, track day, and moderately tuned applications
- Provides a substantial increase in cooling capacity over the factory BMW cooler
Setrab 925
- Ideal for fast road and track vehicles producing 800 hp and above
- Recommended for heavier vehicles weighing 2,000 kg+
- Particularly well suited for towing, endurance driving, and sustained high-load use
- Offers approximately 26% more core volume than the Setrab 625 and 43.9% more core volume than the factory BMW cooler
As vehicle weight, power, and load increase, so does transmission heat generation. Choosing the correct cooler ensures stable transmission temperatures, consistent performance, and maximum drivetrain reliability under demanding conditions.
Important Note
Please note that all DCT conversions require a thermostat for proper operation and long-term reliability.
Make sure to check out the Improved racing thermostat kit — a premium solution for customers seeking the best for their DCT swap.
**May or may not come as pictured. Will come with everything listed in the description. We stock all versions.**
