HPR billet DCT oil pan kit Rev 2.0
We are proud to announce the HPR Rev 2.0 DCT oil pan kit!
It is lighter, stronger, and machined to an impressive surface finish of only 0.4 μm Ra.
We have managed to squeeze out every inside corner to achieve a massive 40% oil volume increase without sacrificing height.

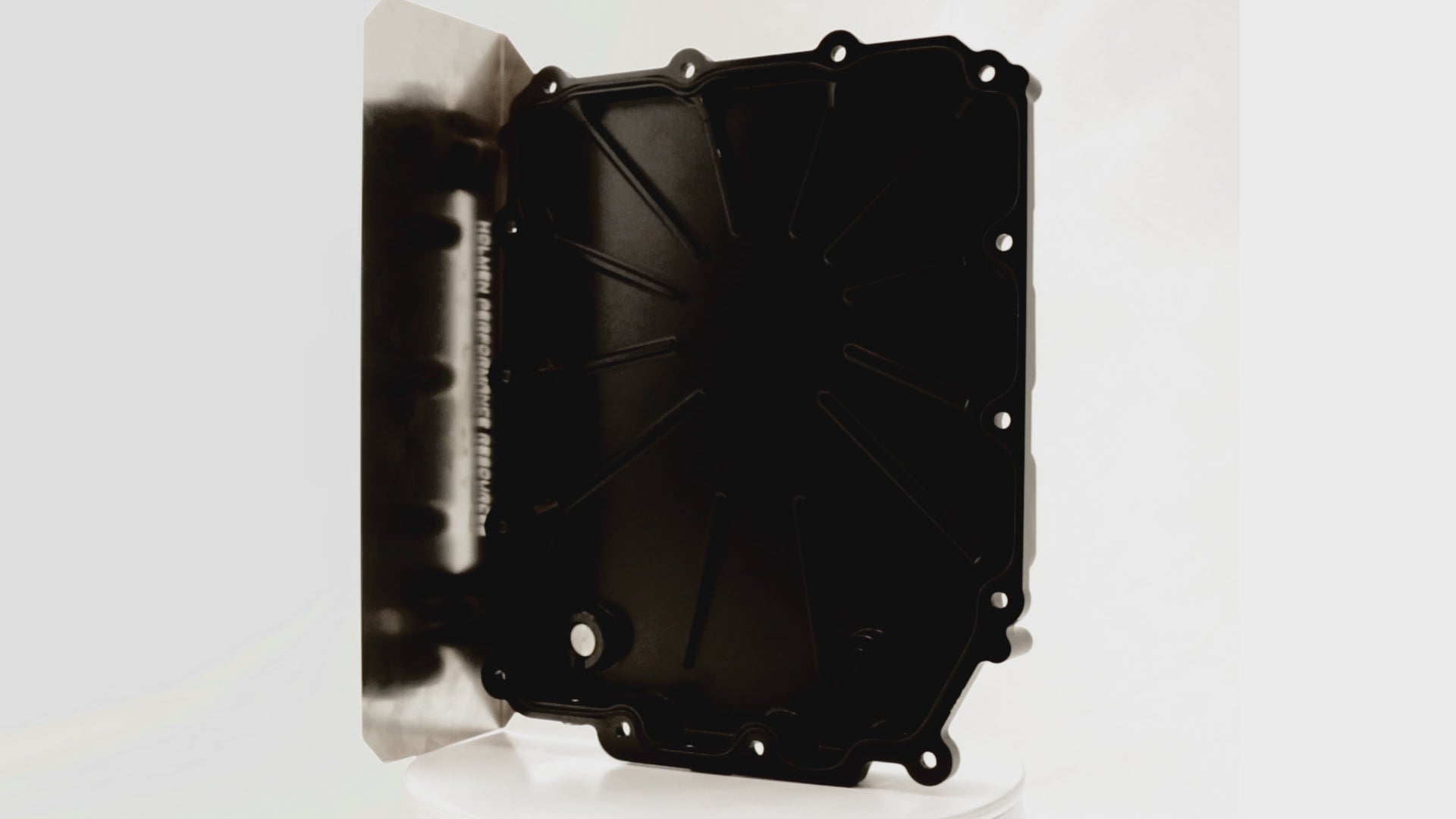

A stainless steel heat shield is now included with the pan kit.
This shield can be installed on both sides of the pan depending on where you have the exhaust.
If you have exhaust on both sides we will send you an additional shield free of charge.
Please look below and enjoy all the features that are packed into this pan kit!
In stock at all times
Worldwide delivery/DHL express 2-6days
Features
- CNC machined out of high grade aluminum, anodized black. (gold optional)
- Hold 40% more oil over the stock pan.
- Integrated baffle design for improved oil control
- Low profile design, only 3mm deeper than the stock pan.
- Fits in all OEM applications.
- Additional oil temp sensor port M10x1mm
- Stainless steel heat shield that can be installed on both sides of the pan.

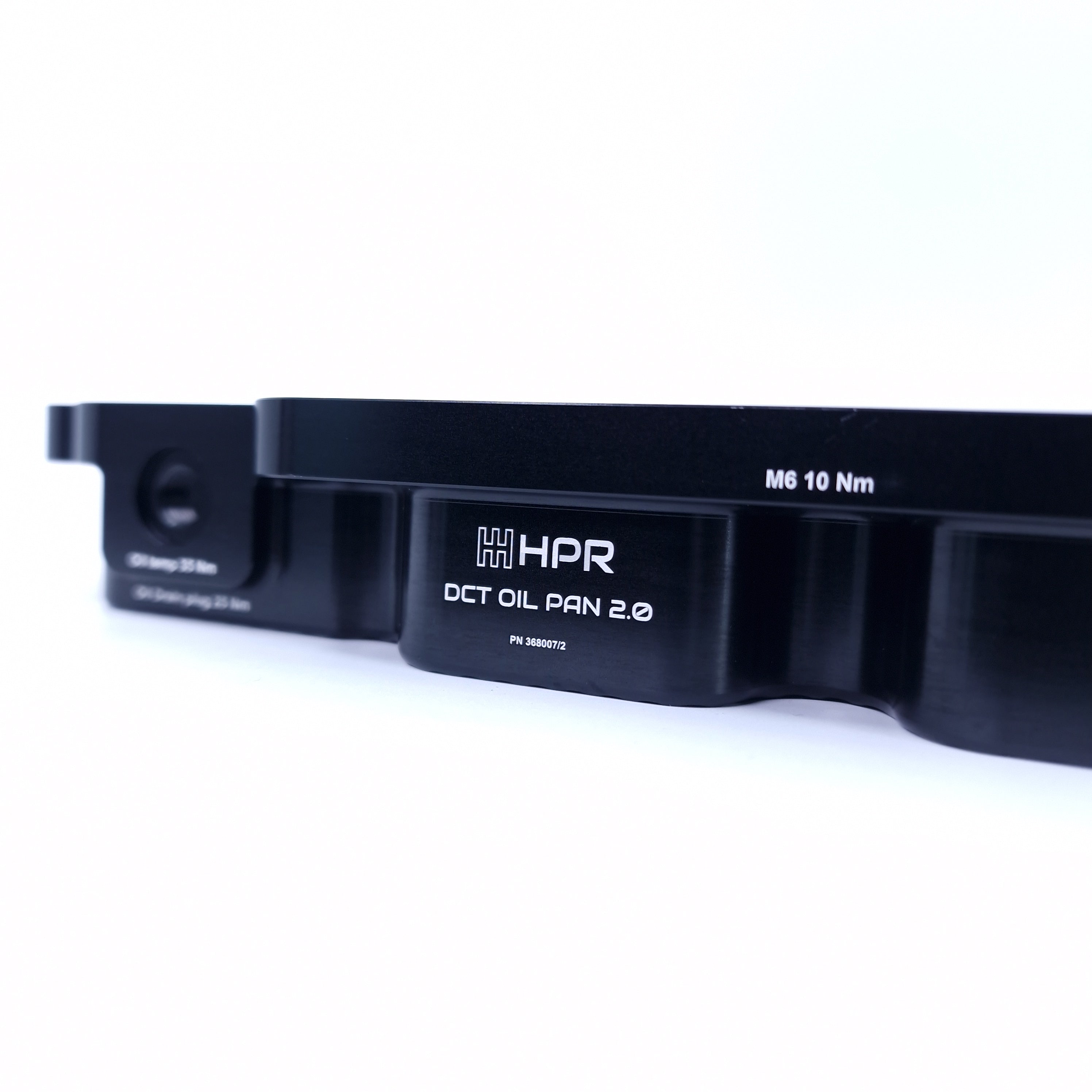

- Laser printed torque specs for an easy install.
- Designed for maximum durability with extra material for both the flange and bottom structure.
- Extra large radius filets are added to prevent cracking in case of a large rock or curbs hitting it.

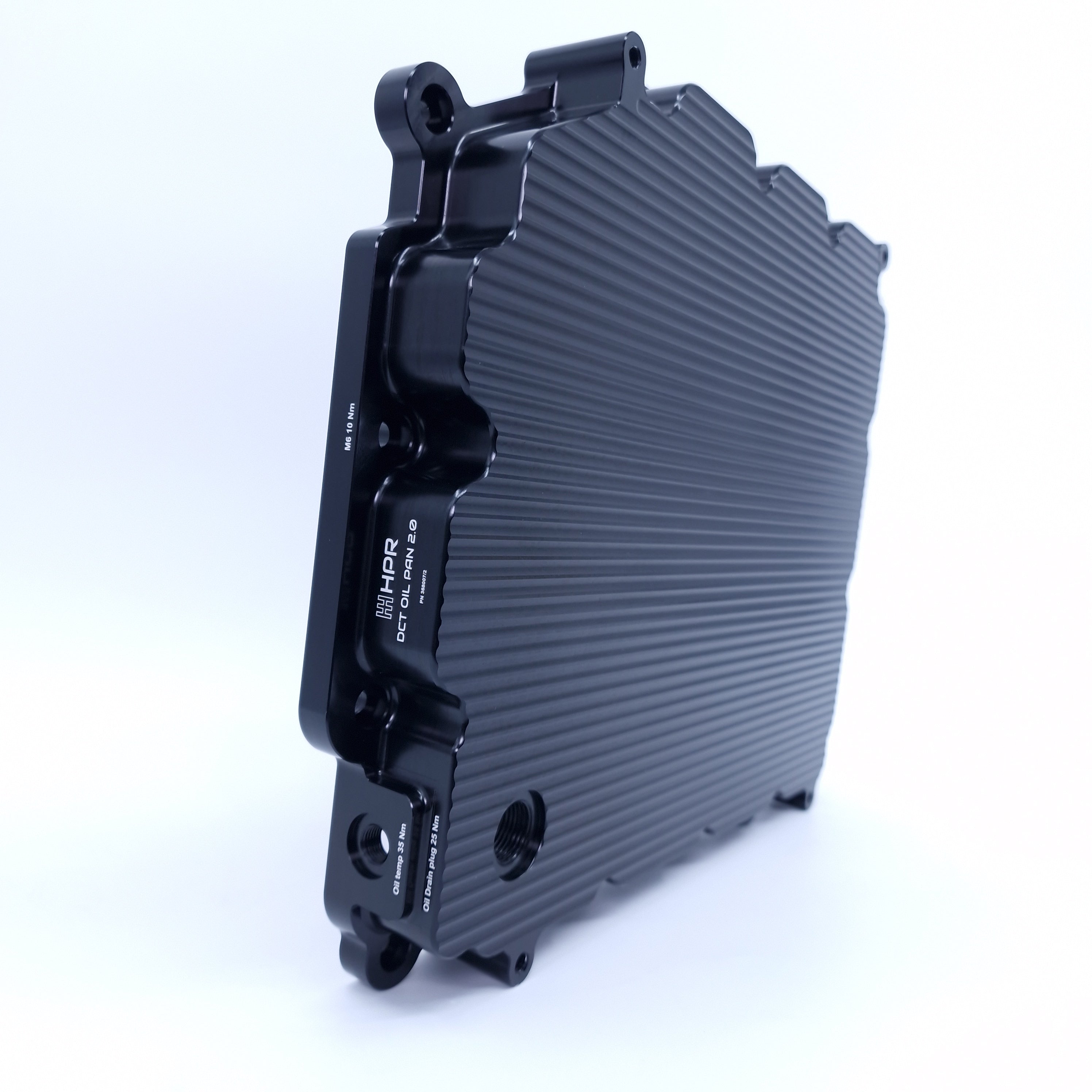

- Serrated surface for increased surface area and better cooling.
The kit comes with
- Billet DCT sump with o-ring and ss bolts (A4/80)
- Flanged stainless steel oil drain plug
- Hardware for oem magnet install
- SS heat shield with teflon washers and SS hardware
Optional:
-Oil-temp/pressure sensor with connector-kit
Genuine Bosch motorsport sensor, connectors with pins and dowty seal.
-HP filter kit with billet aluminium cover
If you are running your exhaust close to the HP filter, we would say that this is a must have.
(M6 holes for the cover can be used to bolt in the Improved racing thermostat for a super smooth install)
- Vaico high pressure filter with o-ring
- HPR aluminum HP filter cover
- New lock ring for HP filter
