Aristo/Lexus/Soarer 8HP45/50/70/75 kit
This transmission kit will take your JZ powered Aristo, Lexus or Soarer to the next level. It may also be possible to use in Chaser, please contact us for confirmation prior to purchase.
The kit is based upon a 8HP45/50/70/75 transmission from BMW equipped with the N57 Engine.
The supplied billet output flange enables you to choose between a stock Supra turbo auto driveshaft, or a Custom driveshaft with 1350u-joint. Saving you money on your custom driveshaft, or gives you the possibility to upgrade on a later stage.
The 1350 solution is also great for owners that are converting the naturally aspirated Supra and dont have the turbo shaft avaliable. Our output flange comes with the correct pilot hole (for both supra and 1350) to perfectly centre your driveshaft.
The flywheels come with pressed heavy duty starter ring gear, so no need to use your old flex plate for the starter. We normally stock this kit at all times. If the kit is on backorder, lead time can be up to 2 weeks. Please send us an email to check avaliability before you order. Pictured tone ring is optional.
Features

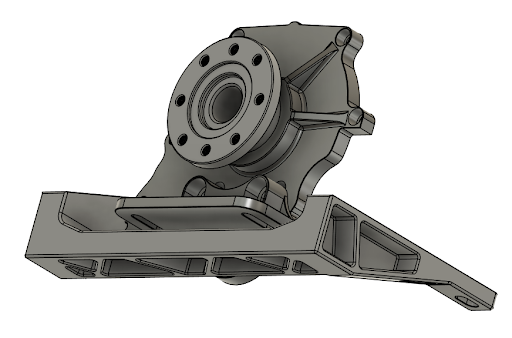

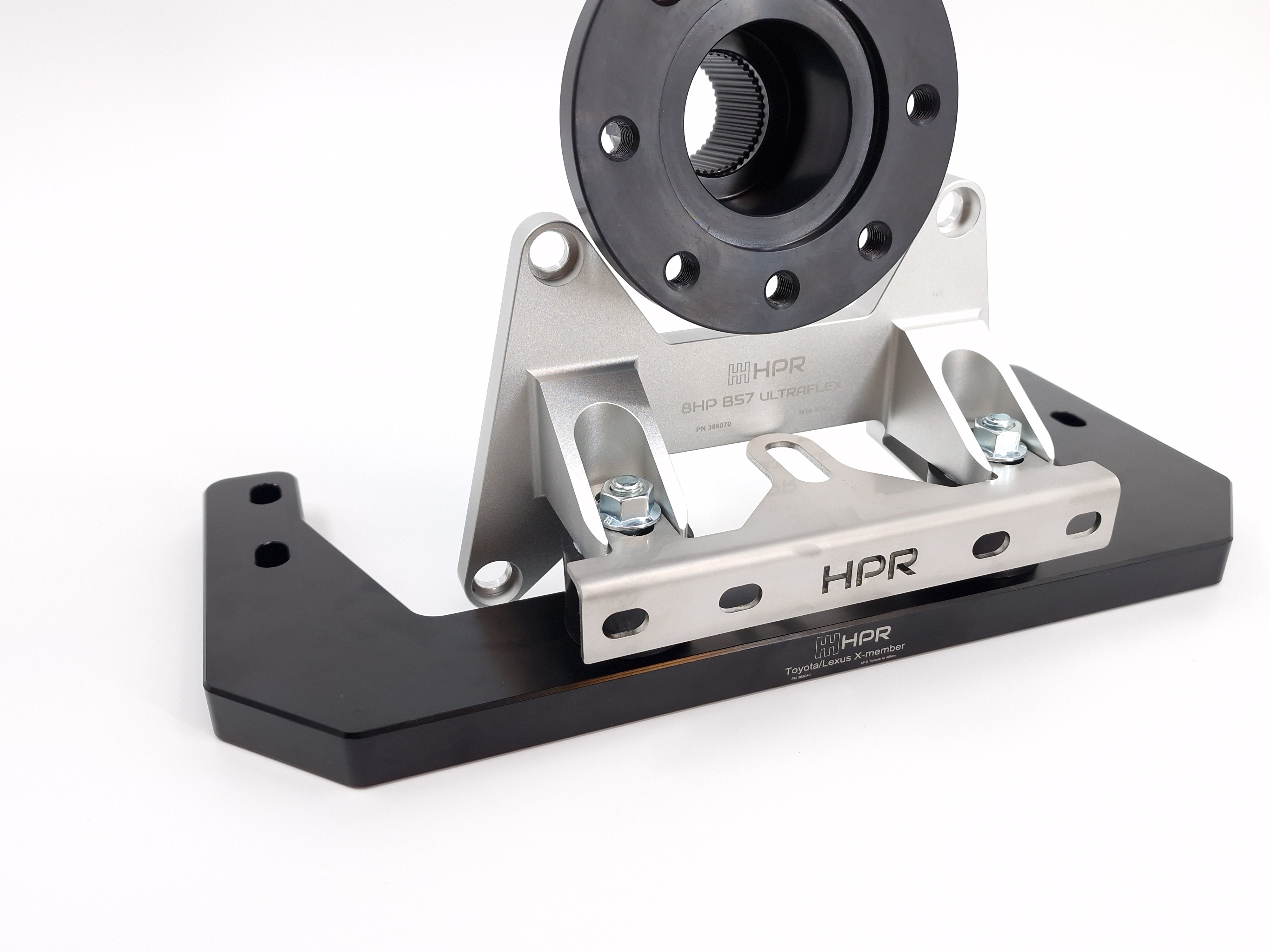

- HPR ultraflex transmission mount kit
- Stainless steel bracket for exhuast and optional external speed sensor

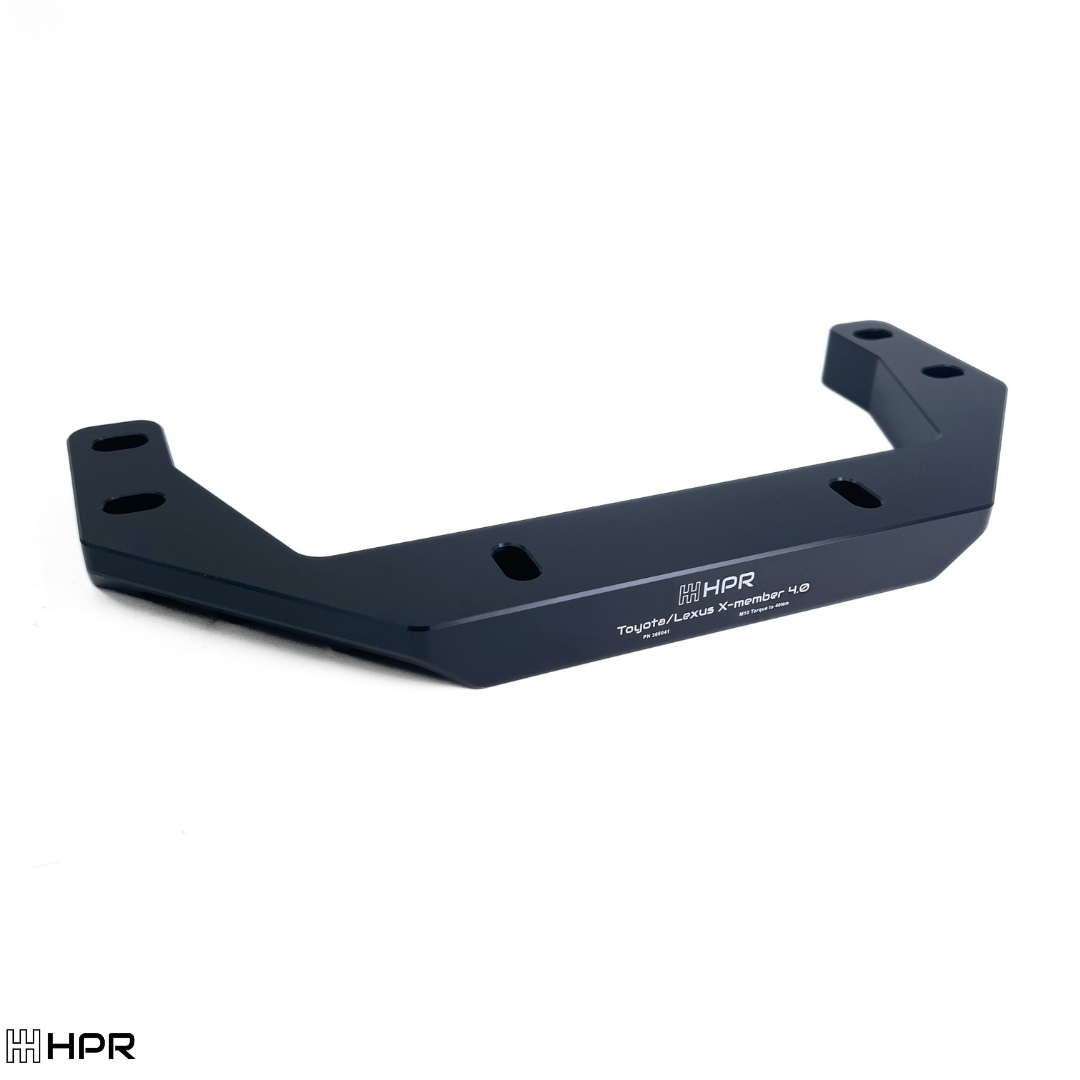

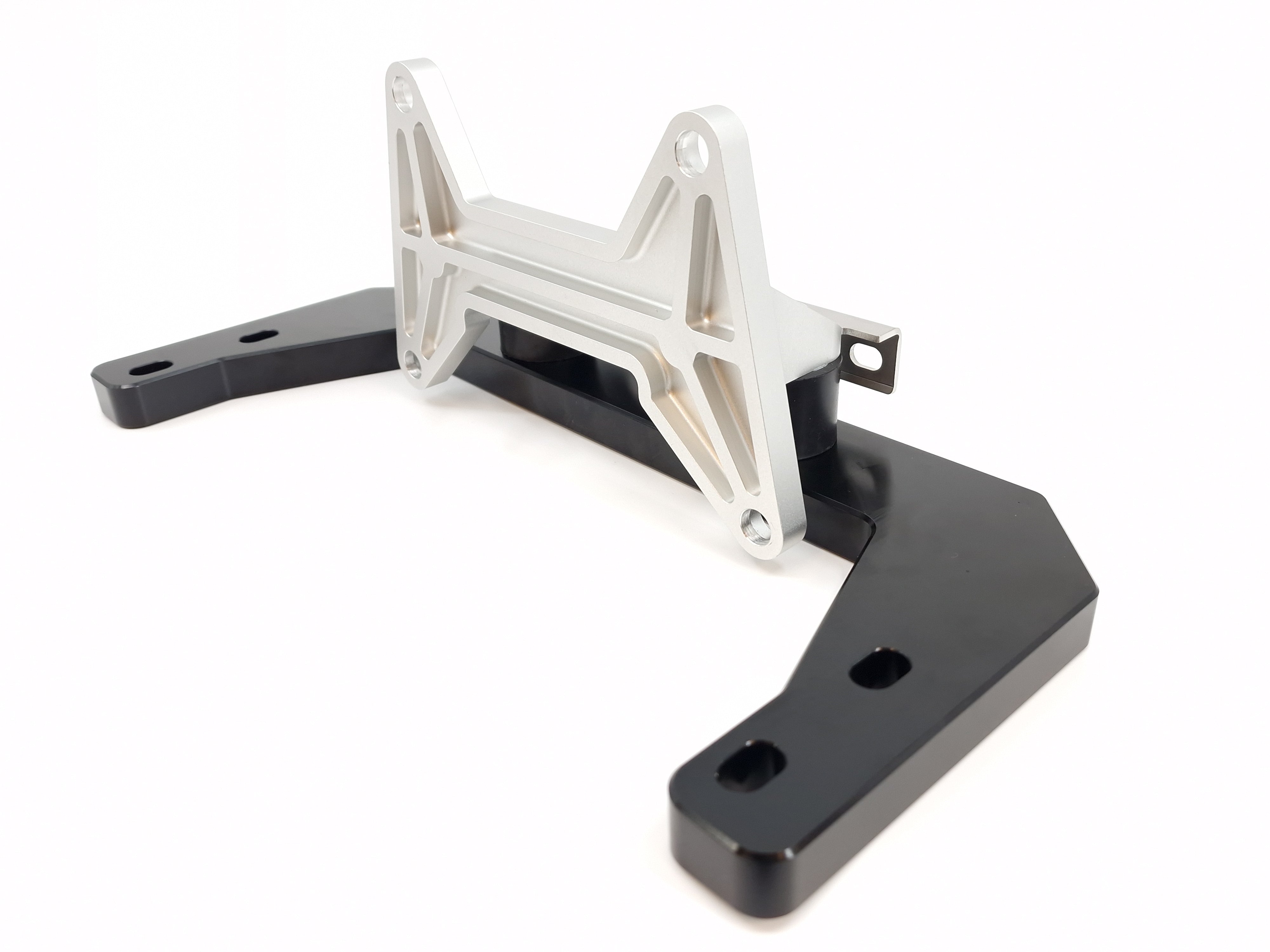

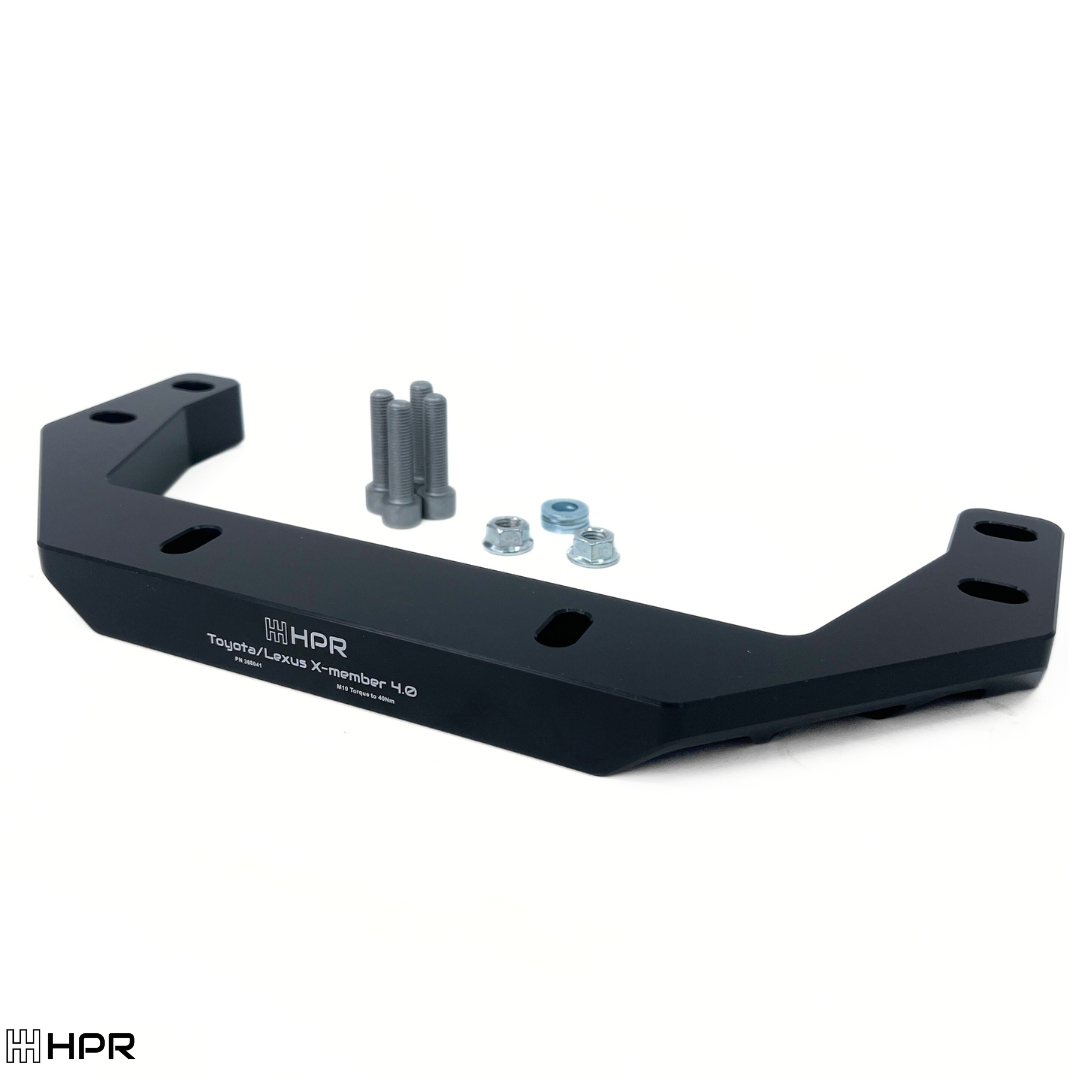

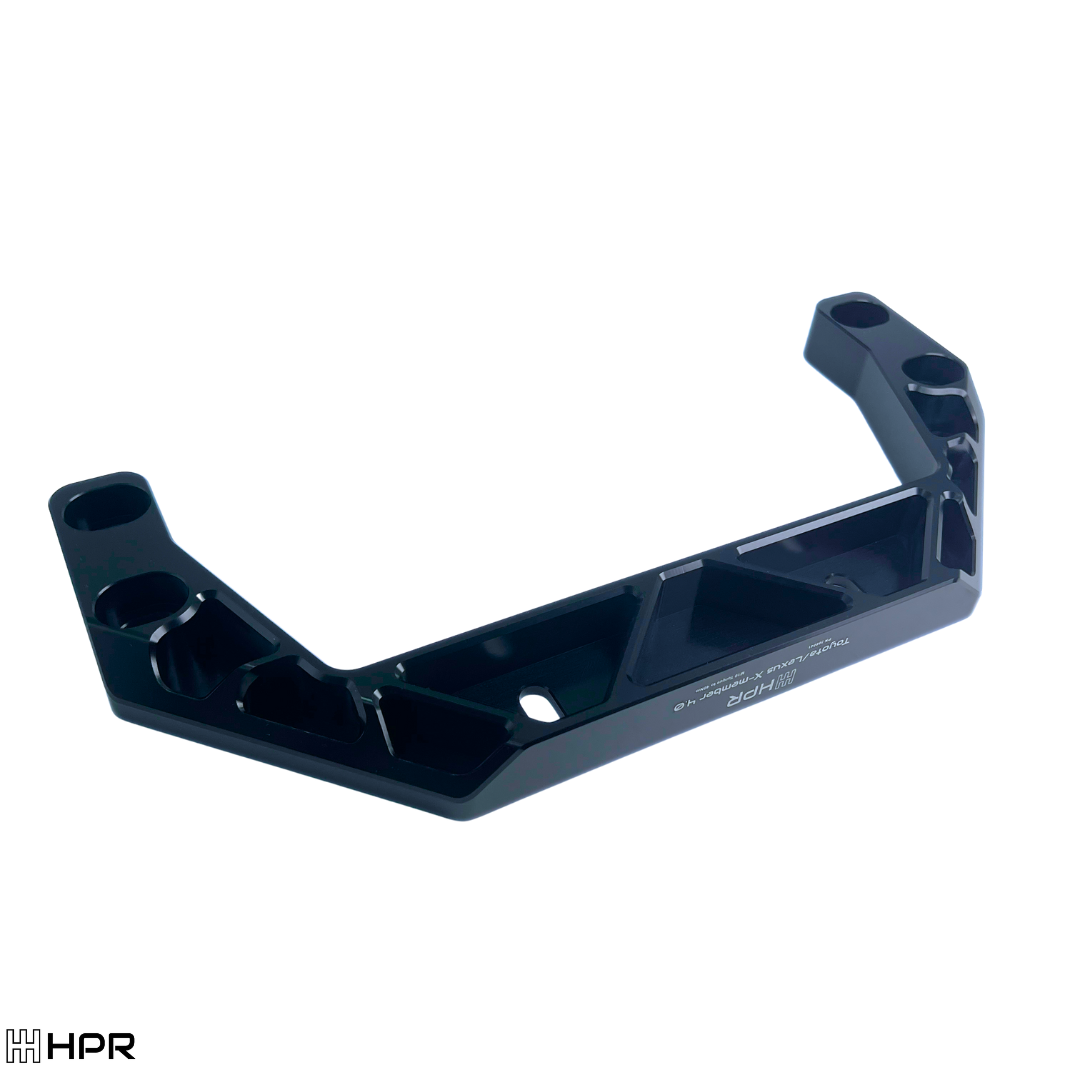

- HPR Billet Aluminium Transmission crossmember

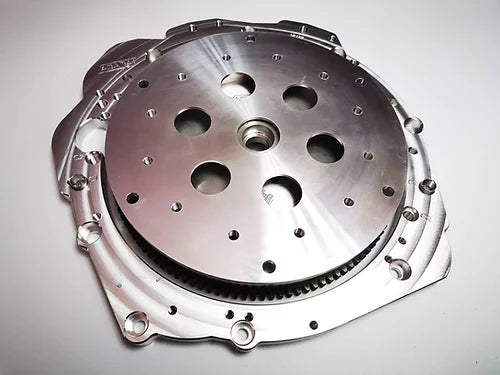

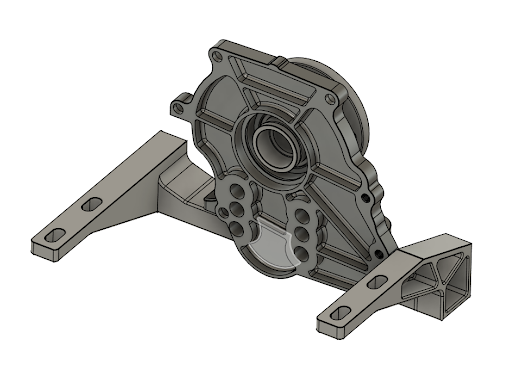

- Transmission to engine adapter plate in 7075 aluminium
- Flywheel with integrated ring gear.Aluminum Alloy AlZnMg+Ti High spec dynamically balanced acc to ISO 1940/1 quality grade G 6.3

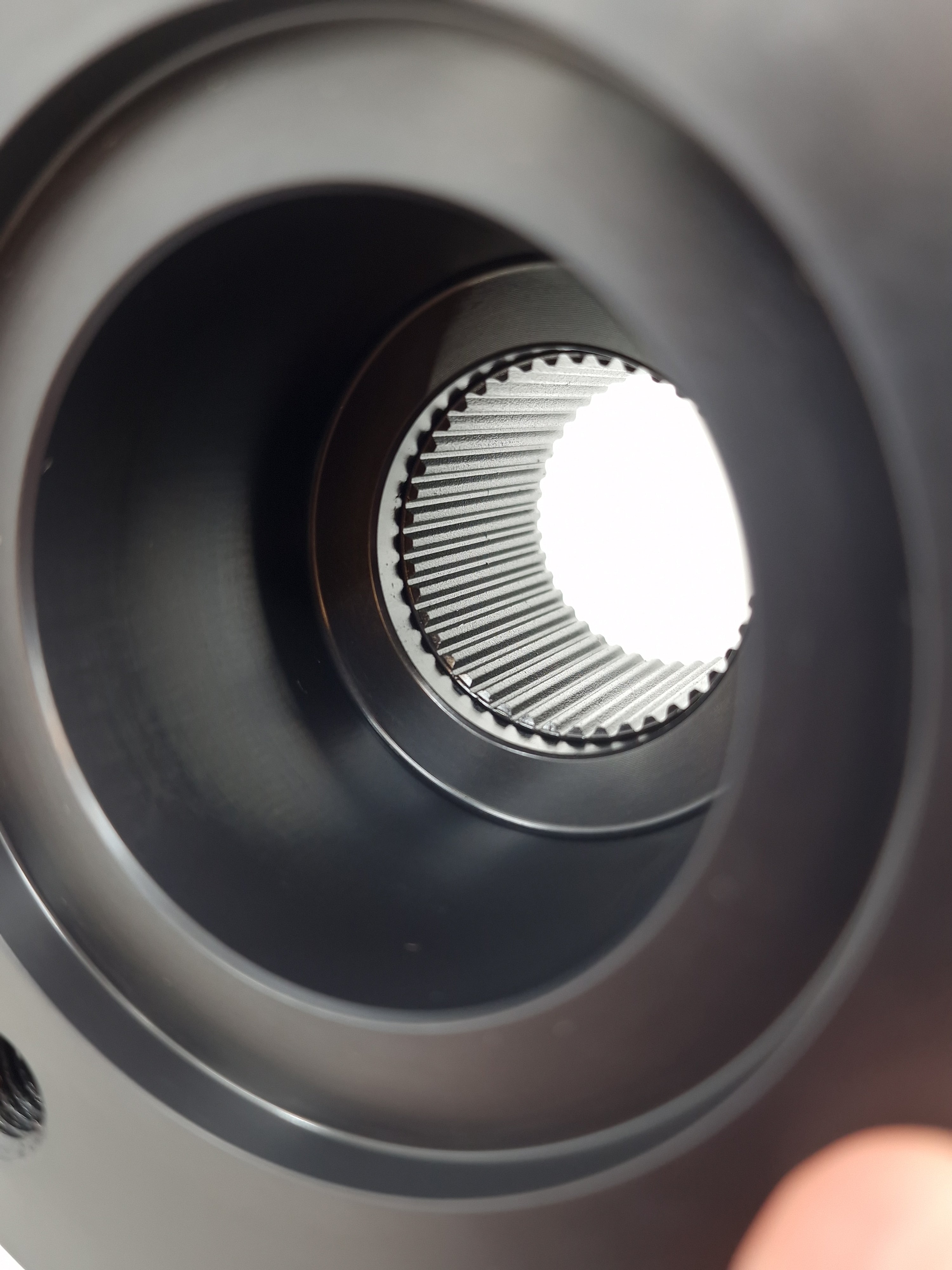

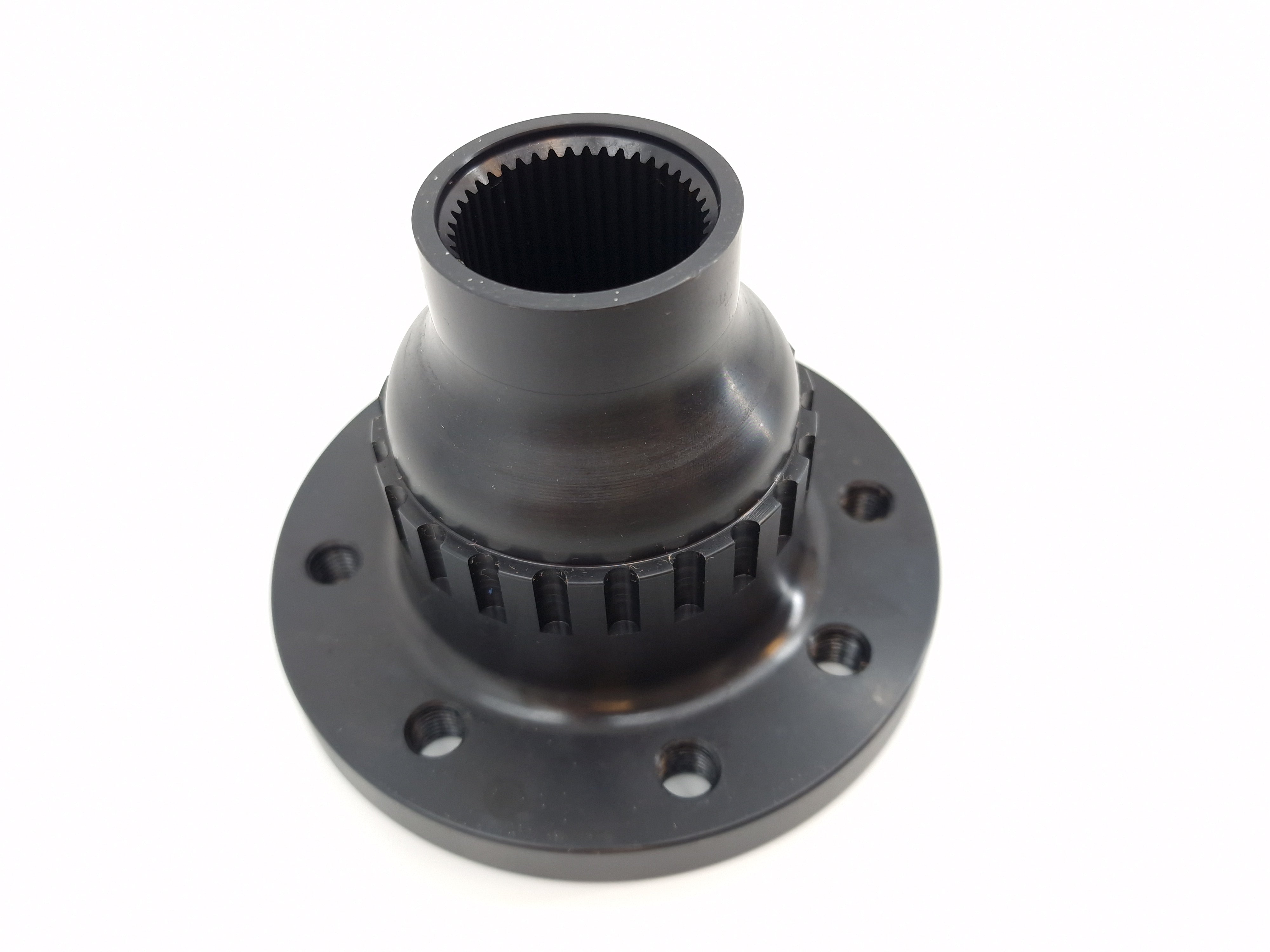

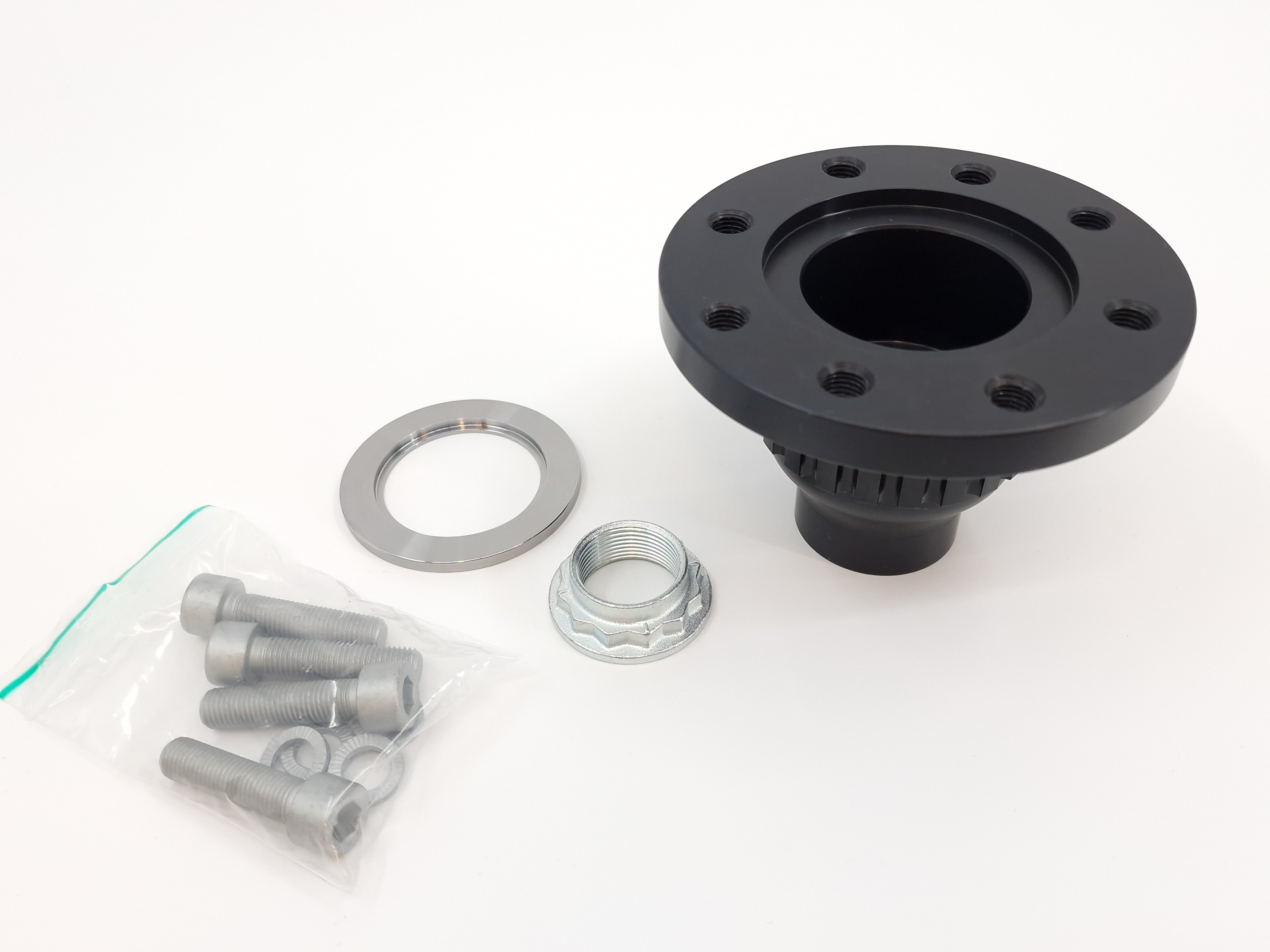

- HPR output flange to suit Supra auto or 1350 driveshaft
- 2x bobbin transmission mounts (60A is slightly harder than the stock bmw)
- All bolts and hardware included
Engine variations
N57 kits is stocked at all times.
We can also offer this kit for other transmissions such as B58/N54/S63/N73 and Jaguar models. Please contact us prior to purchase.
Fitment for (Chaser TBC)
SXE10 (Toyota Altezza/Lexus IS300)
JZX110 (Toyota Mark II, Verossa, and Blit)
JZS161 (Toyota Aristo/Lexus GS300)
JZS171 (Toyota Crown)
UZZ40 (Toyota Soarer/Lexus SC430)
JZX90 (Toyota Mark II, Chaser, and Cresta)
JZX100 (Toyota Mark II, Chaser, and Cresta)
JZZ30 (Toyota Soarer, Lexus SC300)
UZZ30 (Toyota Soarer, Lexus SC400)
Crossmember color
Please let us know your choice of color for the crossmember during checkout.
