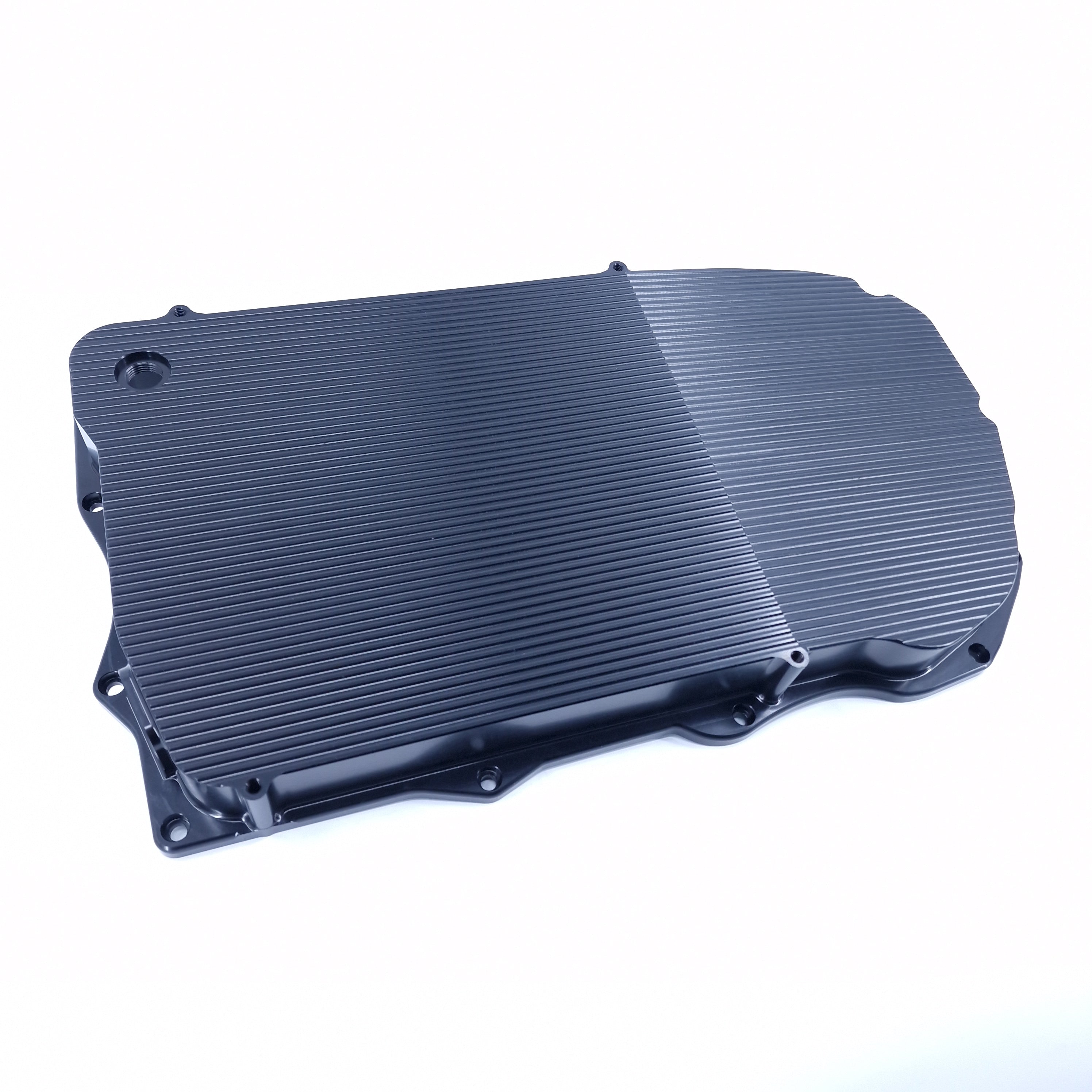

8HP90 oil pan

HPR 8HP90/95 oil pan

The lowest build height 8HP90 pan on the market, with 8mm less build height compared ot the BMW plastic pan!

Suited perfecty for lowered cars requiring additional clearance and increased strenght.
CNC machined out of high grade billet aluminum to a very high finish.

The pan comes with a replaceable filter and features internal baffling and strengthening to keep weight down.



HPR design features
Our tested U profiled baffle and external thread reinforcements are unique to HPR, and have been copied by others on the market.

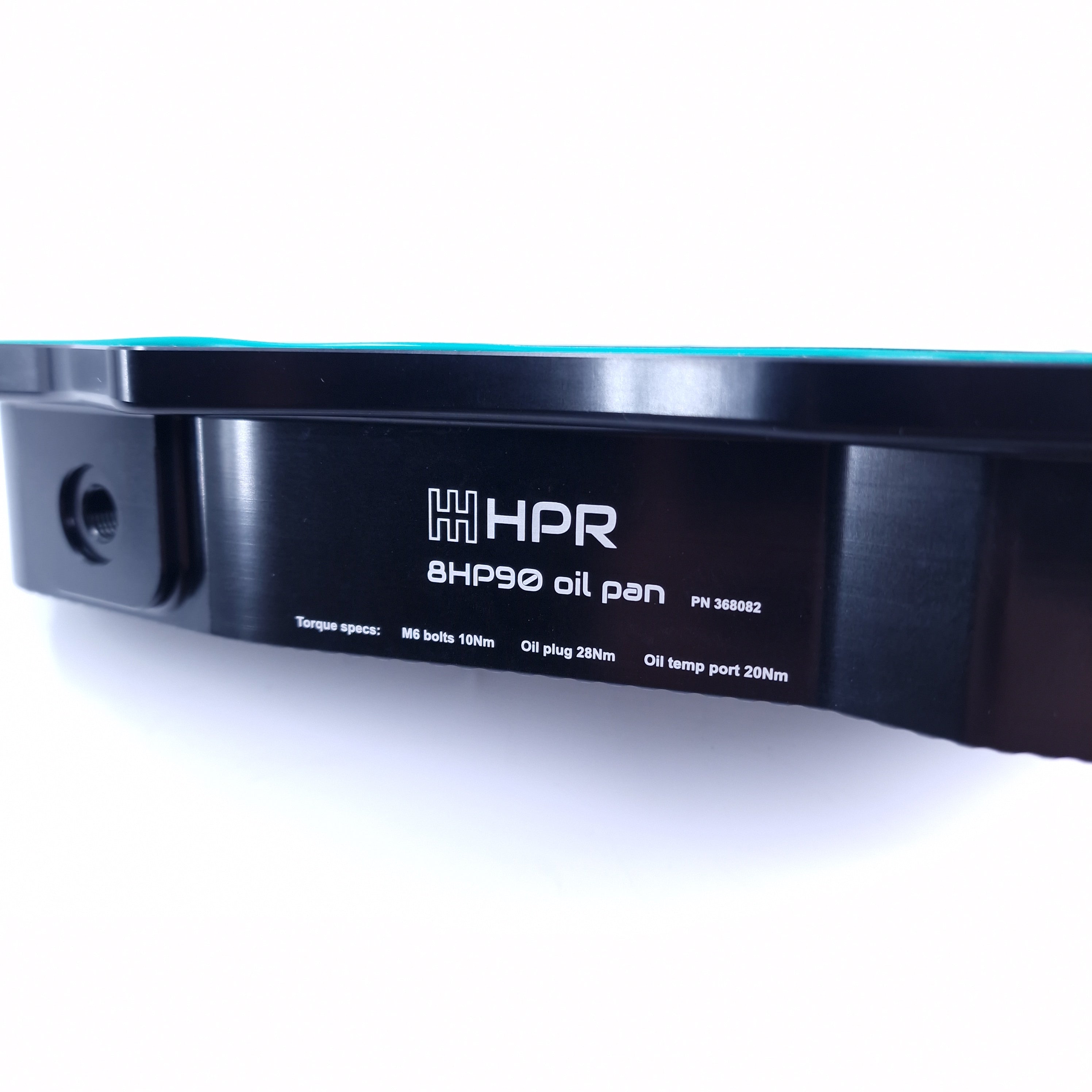

• Laser printed torque specs for ease of installation
• 8mm lower build height vs the stock ZF plastic pan

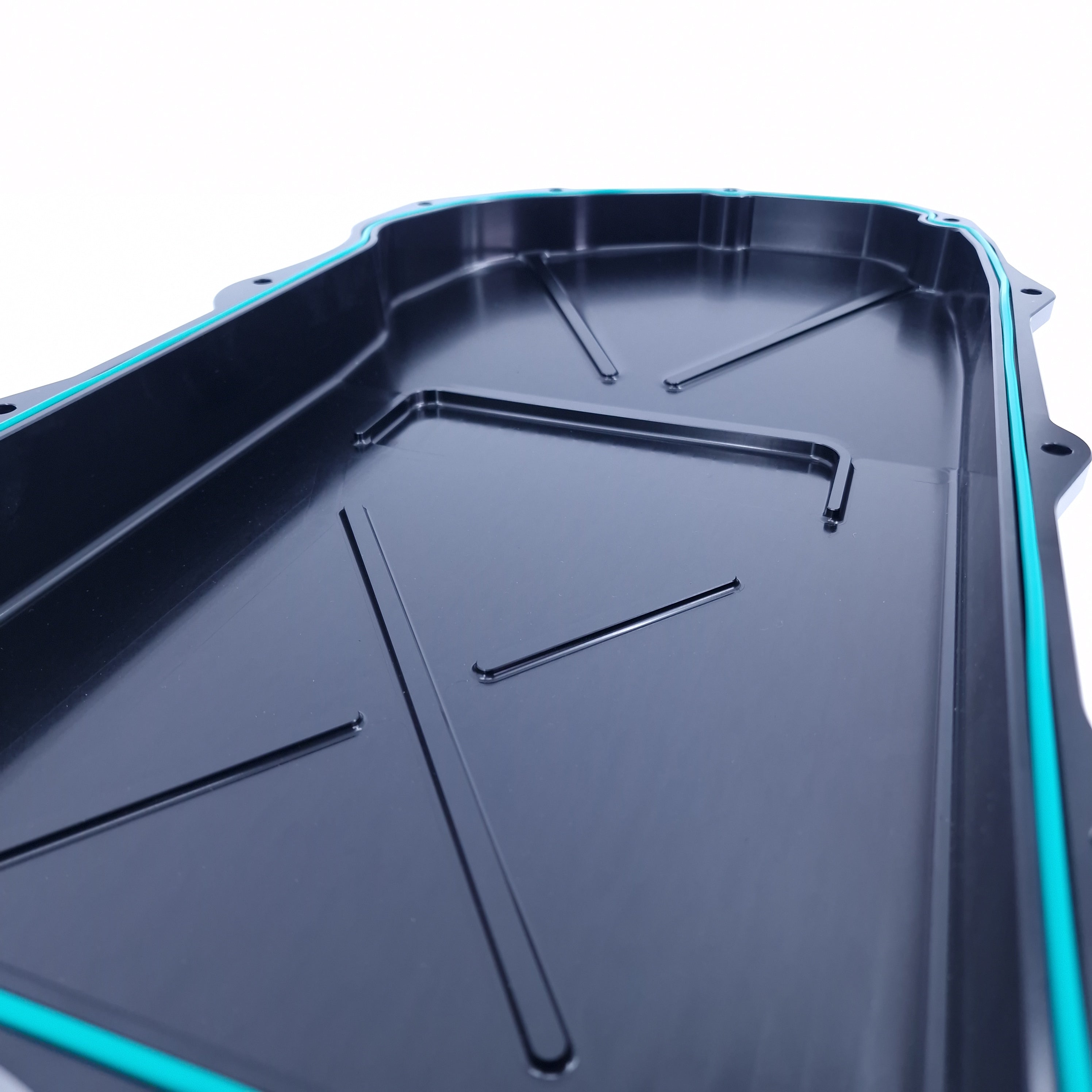

• Flow tested Internal baffling system
• Internal and external reinforcement to keep weight down
• Additional oil capacity over ZF plastic pan
• 4x externally threaded tabs for use with heat shield.
• Suction filter with magnets
• Flanged stainless oil plugs w seal
• O-ring seal (leak free guarantee)
• External M10x1mm port for oil temp sensor
• All installation hardware included



Fitment

• BMW 90/95X (rwd and awd models)
• Rolls Royce
• Dodge (Hellcat 8HP90)
• Bentley

(Will not fit Audi models)

If you have a 8HP90/95 transmission not listed here, contact us and we will help you out.

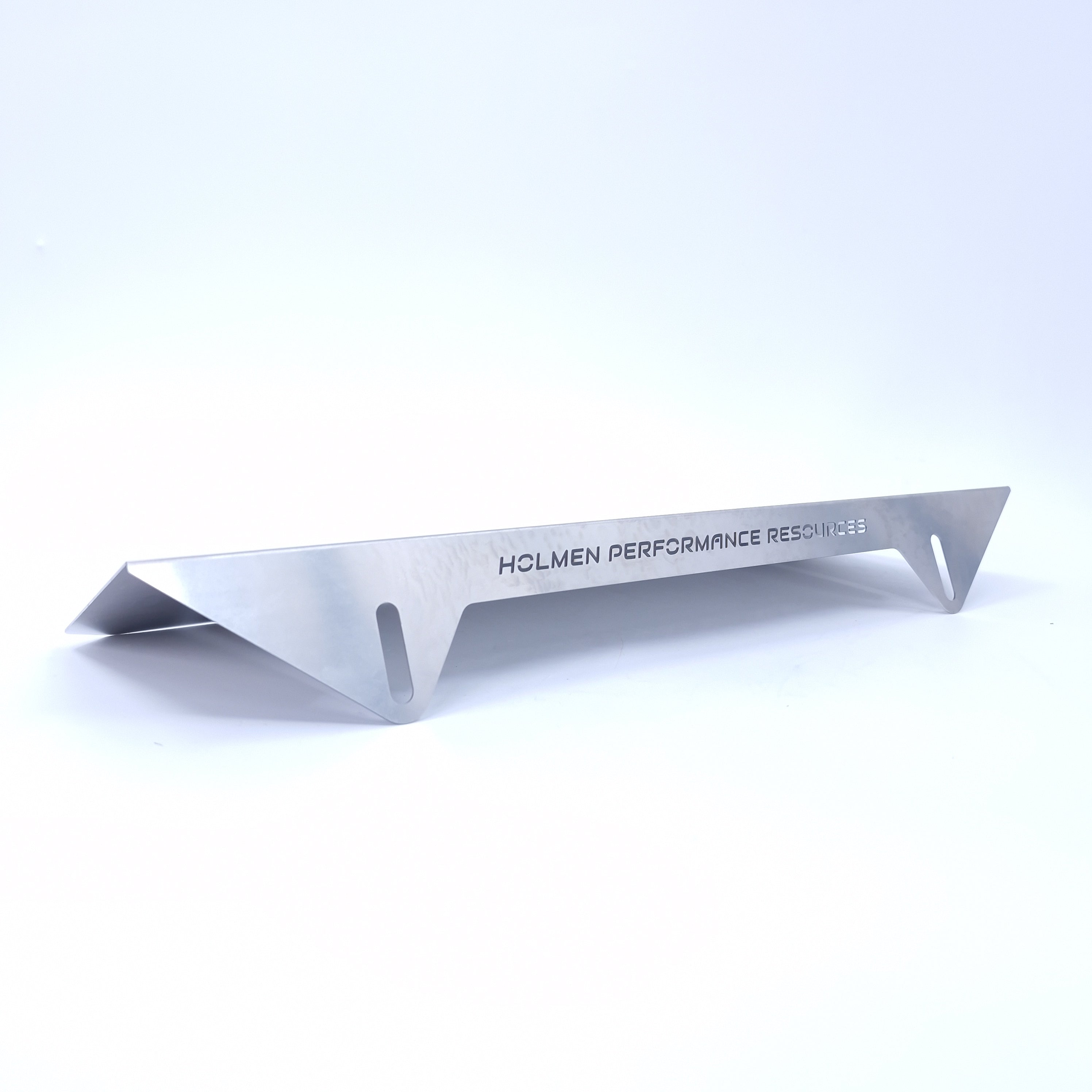

Free stainless steel exhaust sheild
All our 8HP oil pans now comes with a stainless steel heat shield included in the price.

The heat shield can be installed on either side of the pan, and features slotted holes to get it in the perfect position for your application.

Are you running exhaust on both sides of transmission?
Send us a shot of your setup, and
we will send you an additional heat shield FREE OF CHARGE 😊



Please contact us if you are unsure if the pan fits your application. Info@hpr-tuning.com
